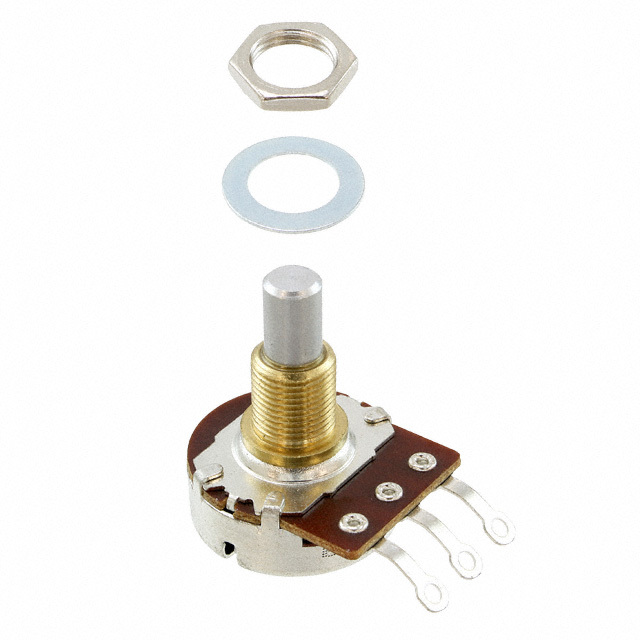

Specification	PDA241-HRT02-504A2

Actuator Diameter	6.35 mm
Actuator Length	0.748 in
Actuator Type	Round
Adjustment Type	User Defined
Built in Switch	None
Bushing Thread	3/8-32
Features	Long Life
Mounting Type	Panel Mount
Number of Gangs	1
Number of Turns	1 turns
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Resistance	500 kOhm
Resistive Material	Carbon
Rotation	300 °
Size - Body Diameter	0.953 in
Size - Body Shape	Round
Taper	Logarithmic
Termination Style	Solder Lug
Tolerance	15 %

PDA241 Series

Part	Size - Body Shape	Size - Body Diameter	Taper	Rotation	Tolerance	Resistive Material	Built in Switch	Bushing Thread	Features	Number of Turns	Power (Watts)	Power (Watts) Options	Adjustment Type	Number of Gangs	Actuator Type	Resistance	Actuator Diameter	Mounting Type	Termination Style	Actuator Length
Bourns Inc. PDA241-SRT00-254B0	Round	0.953 in	Linear	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	500 mW	1/2W	User Defined	1	Knurled and Slotted	250 kOhm	0.236 in	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-SRT02-105A2	Round	0.953 in	Logarithmic	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	250 mW	1/4W	User Defined	1	Round	1 MOhm	6.35 mm	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-HRT02-504A2	Round	0.953 in	Logarithmic	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	250 mW	1/4W	User Defined	1	Round	500 kOhm	6.35 mm	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-SRT00-254A2	Round	0.953 in	Logarithmic	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	250 mW	1/4W	User Defined	1	Knurled and Slotted	250 kOhm	0.236 in	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-HRT02-105A2	Round	0.953 in	Logarithmic	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	250 mW	1/4W	User Defined	1	Round	1 MOhm	6.35 mm	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-SRT01-504B0	Round	0.953 in	Linear	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	500 mW	1/2W	User Defined	1	Knurled and Slotted	500 kOhm	0.236 in	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-HRT02-103B0	Round	0.953 in	Linear	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	500 mW	1/2W	User Defined	1	Round	10 kOhm	6.35 mm	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-HRT02-503B0	Round	0.953 in	Linear	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	500 mW	1/2W	User Defined	1	Round	50 kOhm	6.35 mm	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-SRT01-103A2	Round	0.953 in	Logarithmic	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	250 mW	1/4W	User Defined	1	Knurled and Slotted	10 kOhm	0.236 in	Panel Mount	Solder Lug	0.748 in
Bourns Inc. PDA241-SRT01-253A2	Round	0.953 in	Logarithmic	300 °	15 %	Carbon	None	3/8-32	Long Life	1 turns	250 mW	1/4W	User Defined	1	Knurled and Slotted	25 kOhm	0.236 in	Panel Mount	Solder Lug	0.748 in
