CH8,BK

Active

Serpac

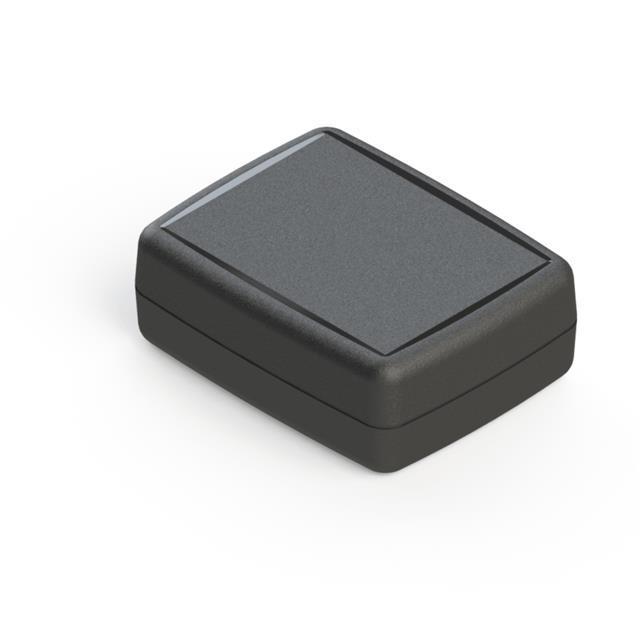

BOX ABS BLACK 2.58"L X 2.02"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 2.58"L X 2.02"W

Technical Specifications

Parameters and characteristics for this part

Specification	CH8,BK

Area (L x W)	33.6 cm²
Area (L x W)	5.21 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	23.62 mm
Height [z]	0.93 "
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	65.53 mm
Size / Dimension [x]	2.58 "
Size / Dimension [y]	2.02 "
Size / Dimension [y]	51.31 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	15.88 g
Weight	0.035 lb

Part	Ratings	Container Type	Area (L x W)	Area (L x W)	Weight	Weight	Color	Material Flammability Rating	Thickness	Thickness	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Height [z]	Height [z]	Features	Area (L x W) [custom]	Area (L x W) [custom]
Serpac CH8,BK	IP40	Box	33.6 cm²	5.21 in²	15.88 g	0.035 lb	Black	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "
Serpac CH8PC,AL	IP40	Box	33.6 cm²	5.21 in²	19.05 g	0.042 lb	Almond	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "	Pocket Clip
Serpac CH8KH,AL	IP40	Box	33.6 cm²	5.21 in²	16.33 g	0.036 lb	Almond	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "	Key Holder
Serpac CH8,AL	IP40	Box			15.88 g	0.035 lb	Almond	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "		5.21 in˛	33.6 cm˛
Serpac CH8PC,GY	IP40	Box	33.6 cm²	5.21 in²	19.05 g	0.042 lb	Gray	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "	Pocket Clip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 2.580" L x 2.020" W (65.53mm x 51.31mm) X 0.930" (23.62mm)
