CH8PC,GY

Active

Serpac

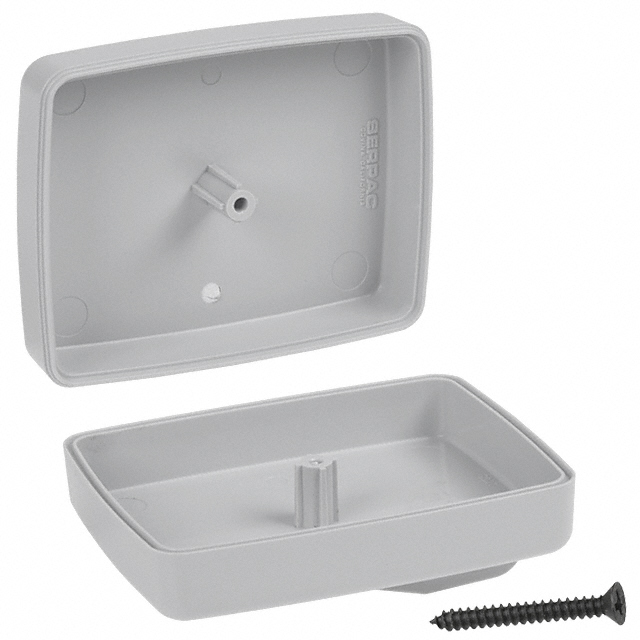

BOX ABS GRAY 2.58"L X 2.02"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 2.58"L X 2.02"W

Technical Specifications

Parameters and characteristics for this part

Specification	CH8PC,GY

Area (L x W)	33.6 cm²
Area (L x W)	5.21 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	23.62 mm
Height [z]	0.93 "
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	65.53 mm
Size / Dimension [x]	2.58 "
Size / Dimension [y]	2.02 "
Size / Dimension [y]	51.31 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.042 lb
Weight	19.05 g

Part	Ratings	Container Type	Area (L x W)	Area (L x W)	Weight	Weight	Color	Material Flammability Rating	Thickness	Thickness	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Height [z]	Height [z]	Features	Area (L x W) [custom]	Area (L x W) [custom]
Serpac CH8,BK	IP40	Box	33.6 cm²	5.21 in²	15.88 g	0.035 lb	Black	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "
Serpac CH8PC,AL	IP40	Box	33.6 cm²	5.21 in²	19.05 g	0.042 lb	Almond	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "	Pocket Clip
Serpac CH8KH,AL	IP40	Box	33.6 cm²	5.21 in²	16.33 g	0.036 lb	Almond	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "	Key Holder
Serpac CH8,AL	IP40	Box			15.88 g	0.035 lb	Almond	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "		5.21 in˛	33.6 cm˛
Serpac CH8PC,GY	IP40	Box	33.6 cm²	5.21 in²	19.05 g	0.042 lb	Gray	UL94 HB	1.52 mm	0.06 in	Plastic ABS	2.02 "	65.53 mm	51.31 mm	2.58 "	Hand Held Split Sides	23.62 mm	0.93 "	Pocket Clip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.06

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 2.580" L x 2.020" W (65.53mm x 51.31mm) X 0.930" (23.62mm)

Technical documentation and resources

No documents available
