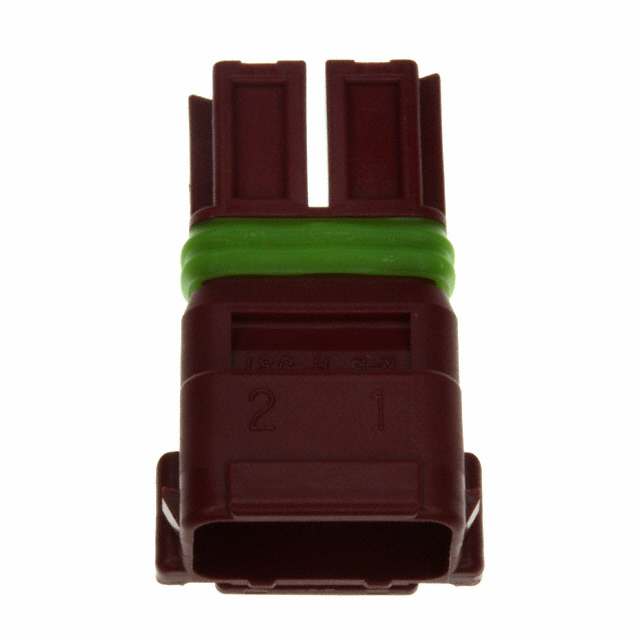

02R-WPJV-2-RM(NN)

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02R-WPJV-2-RM(NN)	02R-WPJV Series

Color	Red	Blue, Red, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Features	JIS C 0920 Grade Level 7	JIS C 0920 Grade Level 7
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

02R-WPJV Series

CONN RCPT HSG 2POS 5.00MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Color	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Mounting Type	Contact Termination	Number of Rows	Note
JST Sales America Inc. 02R-WPJV-3-EMM(NN)	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Blue	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-2-RMM	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Red	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-2-RM(NN)	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Red	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-1-SMM	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Natural	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-1-SM	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Natural	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-3-EM(NN)	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Blue	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240	$ 1.00

Description

General part information

02R-WPJV Series

2 Rectangular Connectors - Housings Receptacle Red 0.197" (5.00mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
