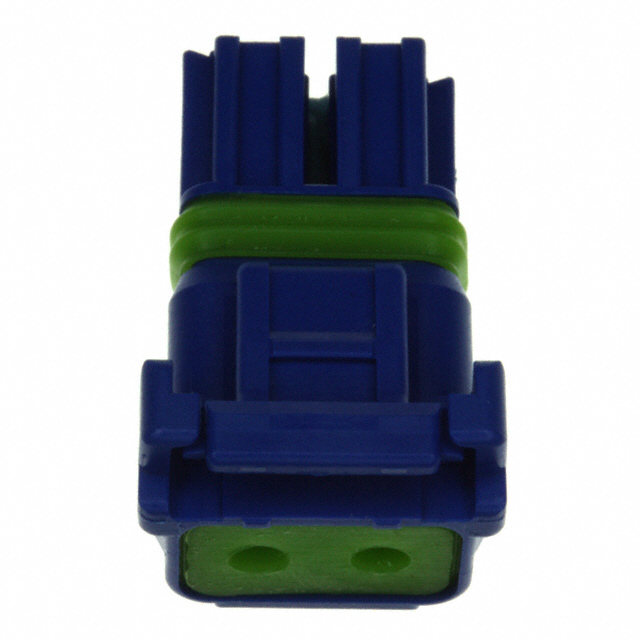

02R-WPJV-3-EMM(NN)

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

02R-WPJV-3-EMM(NN)

Active

JST Sales America Inc.

CONN RCPT HSG 2POS 5.00MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1440	$ 0.76

Description

General part information

02R-WPJV Series

2 Rectangular Connectors - Housings Receptacle Blue 0.197" (5.00mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02R-WPJV-3-EMM(NN)	02R-WPJV Series

Color	Blue	Blue, Red, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Features	JIS C 0920 Grade Level 7	JIS C 0920 Grade Level 7
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

02R-WPJV Series

CONN RCPT HSG 2POS 5.00MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Color	Contact Type	Fastening Type	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Mounting Type	Contact Termination	Number of Rows	Note
JST Sales America Inc. 02R-WPJV-3-EMM(NN)	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Blue	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-2-RMM	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Red	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-2-RM(NN)	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Red	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-1-SMM	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Natural	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-1-SM	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Natural	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
JST Sales America Inc. 02R-WPJV-3-EM(NN)	-25 °C	85 °C	JIS C 0920 Grade Level 7	Receptacle	Blue	Female Socket	Latch Lock	5 mm	0.197 in	2	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Crimp	1	Contacts Not Included
