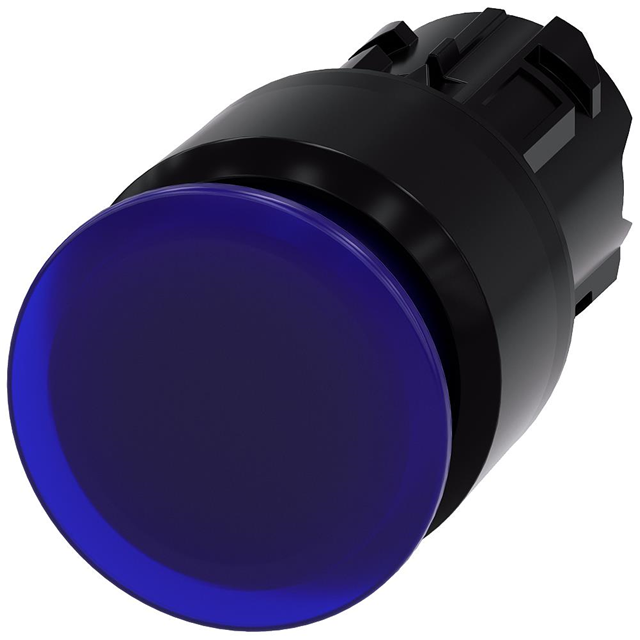

3SU10011AA500AA0

Active

Siemens

CONFIG SW BODY MUSH PB ILLUM

Search across all available documentation for this part.

Active

Siemens

CONFIG SW BODY MUSH PB ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	3SU10011AA500AA0

(Select First, Then Apply Filters) Compatible Series	22 mm
(Select First, Then Apply Filters) Compatible Series	Siemens
Actuator Type	Pushbutton, Mushroom
Illumination	Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Actuator Type	Illumination	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Type	Requires	Panel Cutout Dimensions
Siemens 3SU10013BB420AA0	Pushbutton Oval (Dual)	Illuminated	22 mm	Siemens	Momentary	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10010AA500AA0	Pushbutton Round	Illuminated	22 mm	Siemens	Maintained	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10013BB610AK0	Pushbutton Oval (Dual)	Illuminated	22 mm	Siemens	Momentary	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10011AD400AA0	Pushbutton Mushroom	Illuminated	22 mm	Siemens	Momentary	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10013BB610AA0	Pushbutton Oval (Dual)	Illuminated	22 mm	Siemens	Momentary	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10011BA300AA0	Pushbutton Mushroom	Illuminated	22 mm	Siemens	Maintained	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10013AB660AP0	Pushbutton Oval (Dual)	Illuminated	22 mm	Siemens	Momentary	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10011BD600AA0	Pushbutton Mushroom	Illuminated	22 mm	Siemens	Momentary	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10010AD700AA0	Pushbutton Round	Illuminated	22 mm	Siemens	Maintained	Contact Block(s) Illumination Source	22.3 mm
Siemens 3SU10011AA500AA0	Pushbutton Mushroom	Illuminated	22 mm	Siemens	Maintained	Contact Block(s) Illumination Source	22.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 38.41
