MFG_3SU10013BB610AK0

3SU10013BB610AK0

Active

CONFIG SW BODY PUSHBUTTON ILLUM

MFG_3SU10013BB610AK0

3SU10013BB610AK0

Active

CONFIG SW BODY PUSHBUTTON ILLUM

Description Specifications Series Pricing CAD Documents

Description

General part information

3SU1001 Series

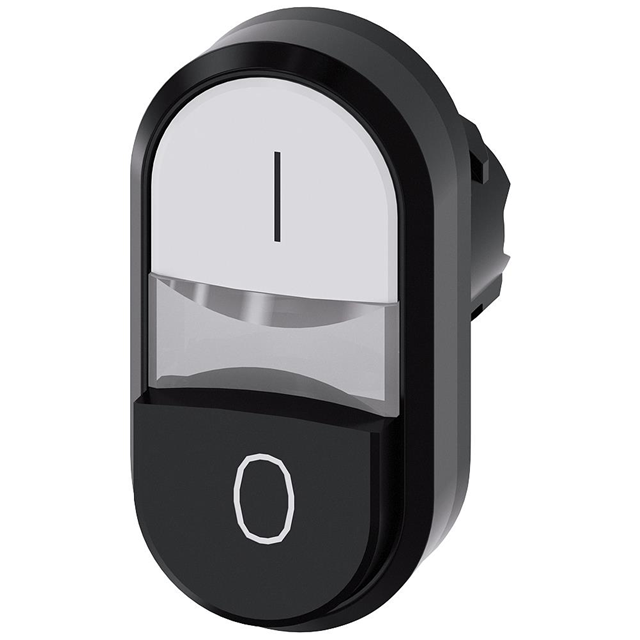

Configurable Switch Body Pushbutton, Oval (Dual) Illuminated

Technical Specifications

Parameters and characteristics for this part

Specification	3SU10013BB610AK0

Actuator Type	Oval (Dual), Pushbutton
Compatible Series	Siemens
Compatible Series Dimension	22 mm
Illumination	Illuminated
Panel Cutout Dimension	22.3 mm
Panel Cutout Shape	Round
Requires	Illumination Source, Contact Block(s)
Type	Momentary

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SIRIUS ACT Profinet Integration WhitePaper

SIRIUS Act IP69K and NEMA 4X Whitepaper

3SU10013BB610AK0 | Datasheet

3SU1001 Series

Part	Compatible Series Dimension	Compatible Series	Type	Panel Cutout Dimension	Panel Cutout Shape	Requires	Actuator Type	Illumination
Siemens 3SU10013BB420AA0	22 mm	Siemens	Momentary	22.3 mm	Round	Contact Block(s) Illumination Source	Oval (Dual) Pushbutton	Illuminated
Siemens 3SU10011AA300AA0	22 mm	Siemens	Maintained	22.3 mm	Round	Contact Block(s) Illumination Source	Mushroom Pushbutton	Illuminated
Siemens 3SU10010AA500AA0	22 mm	Siemens	Maintained	22.3 mm	Round	Contact Block(s) Illumination Source	Pushbutton Round	Illuminated
Siemens 3SU10013BB610AK0	22 mm	Siemens	Momentary	22.3 mm	Round	Contact Block(s) Illumination Source	Oval (Dual) Pushbutton	Illuminated
Siemens 3SU10010AD400AA0	22 mm	Siemens	Maintained	22.3 mm	Round	Contact Block(s) Illumination Source	Pushbutton Round	Illuminated
Siemens 3SU10011AD400AA0	22 mm	Siemens	Momentary	22.3 mm	Round	Contact Block(s) Illumination Source	Mushroom Pushbutton	Illuminated
Siemens 3SU10011BA300AA0	22 mm	Siemens	Maintained	22.3 mm	Round	Contact Block(s) Illumination Source	Mushroom Pushbutton	Illuminated
Siemens 3SU10013AB660AP0	22 mm	Siemens	Momentary	22.3 mm	Round	Contact Block(s) Illumination Source	Oval (Dual) Pushbutton	Illuminated
Siemens 3SU10011BD600AA0	22 mm	Siemens	Momentary	22.3 mm	Round	Contact Block(s) Illumination Source	Mushroom Pushbutton	Illuminated
Siemens 3SU10010AD700AA0	22 mm	Siemens	Maintained	22.3 mm	Round	Contact Block(s) Illumination Source	Pushbutton Round	Illuminated
