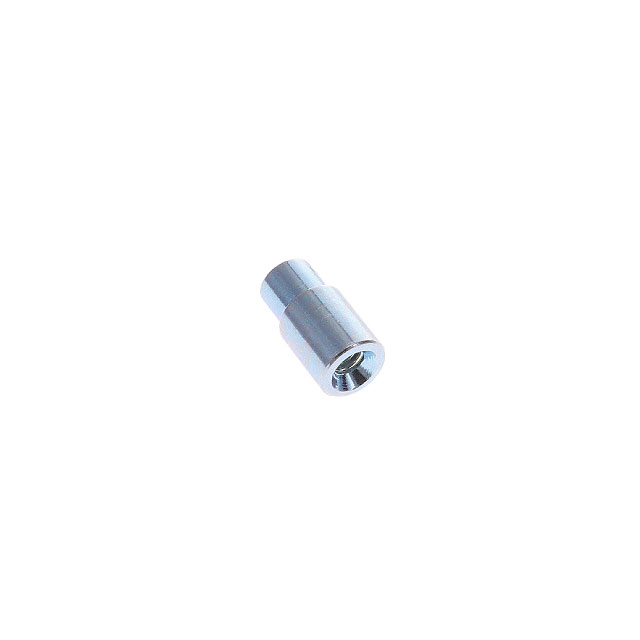

3016-B-256-B-12
ActiveRAF Electronic Hardware
5/32 RD X 3/16 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3016-B-256-B-12
ActiveRAF Electronic Hardware
5/32 RD X 3/16 LENGTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3016-B-256-B-12 |
|---|---|
| Between Board Height | 0.188 " |
| Between Board Height | 4.78 mm |
| Between Board Height | 0.1875 " |
| Color | Clear |
| Diameter - Outside [diameter] | 0.156 in |
| Diameter - Outside [diameter] | 3.97 mm |
| Gender | Swage, Female |
| Length - Overall [x] | 0.293 in |
| Length - Overall [x] | 7.43 mm |
| Material | Brass |
| Plating | Zinc, Chromate |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.63 | |
| 5 | $ 0.52 | |||
| 10 | $ 0.48 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
Description
General part information
3016-B Series
Round Standoff Threaded #2-56 Brass 0.188" (4.78mm) 3/16" Clear
