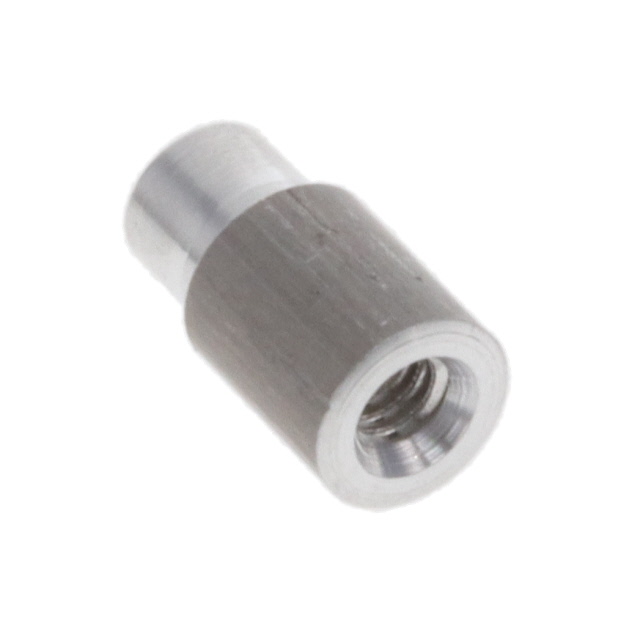

3016-B-256-AL
ActiveRAF Electronic Hardware
5/32_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
Search across all available documentation for this part.
3016-B-256-AL
ActiveRAF Electronic Hardware
5/32_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3016-B-256-AL |
|---|---|
| Between Board Height | 0.188 " |
| Between Board Height | 4.78 mm |
| Between Board Height | 0.1875 " |
| Diameter - Outside [diameter] | 0.156 in |
| Diameter - Outside [diameter] | 3.97 mm |
| Gender | Swage, Female |
| Length - Overall [x] | 0.293 in |
| Length - Overall [x] | 7.43 mm |
| Material | Aluminum |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.71 | |
| 5 | $ 1.42 | |||
| 10 | $ 1.28 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.03 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.85 | |||
Description
General part information
3016-B Series
Round Standoff Threaded #2-56 Aluminum 0.188" (4.78mm) 3/16"
Documents
Technical documentation and resources
No documents available
