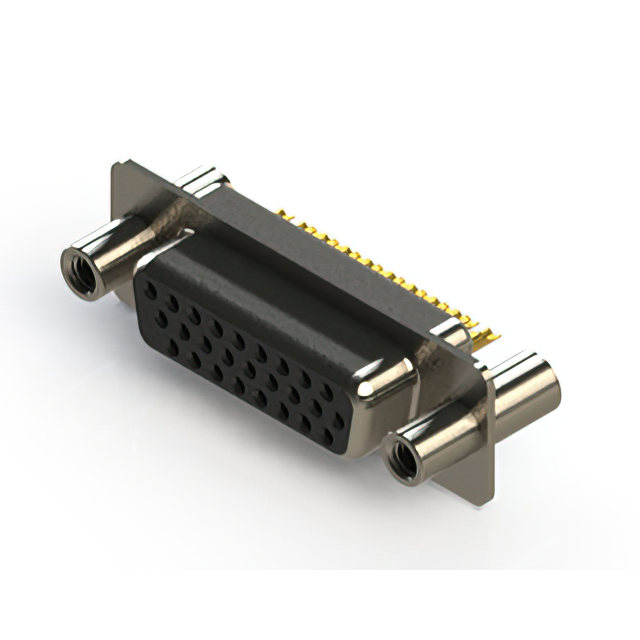

Specification	638-M26-632-BN4

Color	Black
Connector Layout	DA, A, High Density
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded
Finish	Nickel Plated
Flange Feature	Board Side (4-40), Mating Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder Cup

638-M26 Series

Part	Contact Finish	Number of Rows	Features	Connector Type	Contact Type	Number of Positions	Material Flammability Rating	Finish	Shell Material	Flange Feature	Shell Size	Connector Layout	Termination	Mounting Type	Current Rating	Contact Finish Thickness	Connector Style	Contact Form	Color	Contact Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 638-M26-632-BT2	Gold	3	Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Tin Plated	Steel	Housing Shell (4-40)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	30 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-230-BN6	Gold	3	Board Lock Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Mating Side (4-40)	2	A DA High Density	Solder	Through Hole	5 A	0	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C	Flash	Flash
EDAC Inc. 638-M26-630-BN5	Gold	3	Board Lock Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Board Side (4-40)	2	A DA High Density	Solder	Through Hole	5 A	30 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-632-BN1	Gold	3	Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Housing Shell (Unthreaded)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	30 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-332-BN5	Gold	3	Board Lock Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Board Side (4-40)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	15 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-230-BN5	Gold	3	Board Lock Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Board Side (4-40)	2	A DA High Density	Solder	Through Hole	5 A	0	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C	Flash	Flash
EDAC Inc. 638-M26-332-BN3	Gold	3	Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Board Side (4-40)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	15 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-632-BN4	Gold	3	Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Board Side (4-40) Mating Side (4-40)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	30 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-632-BT4	Gold	3	Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Tin Plated	Steel	Board Side (4-40) Mating Side (4-40)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	30 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
EDAC Inc. 638-M26-332-BN6	Gold	3	Board Lock Shielded	Female Sockets Receptacle	Signal	26	UL94 V-0	Nickel Plated	Steel	Mating Side (4-40)	2	A DA High Density	Solder Cup	Free Hanging (In-Line)	5 A	15 µin	D-Sub High Density	Machined	Black	Copper Alloy	Nylon 9T Polyamide (PA9T)	125 °C	-55 °C
