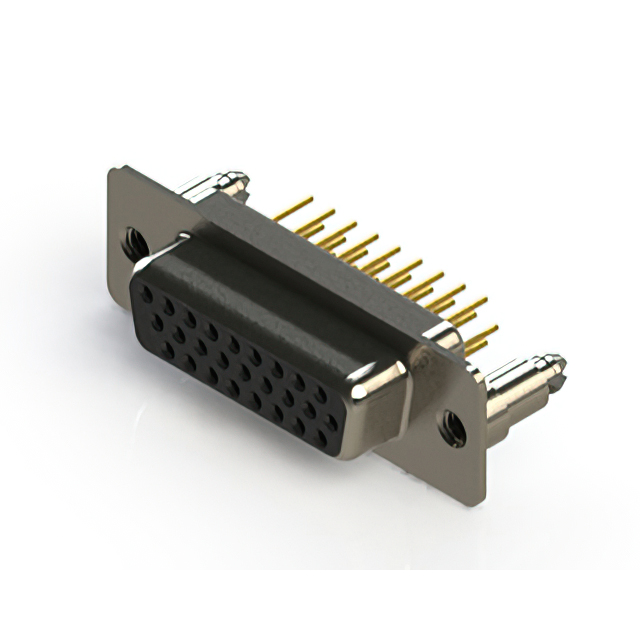

638-M26-630-BN5

Active

EDAC Inc.

638M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-M26-630-BN5

Active

EDAC Inc.

638M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-M26-630-BN5

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

638-M26 Series

Part	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Dielectric Material	Contact Material	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Number of Positions	Material Flammability Rating	Connector Style	Number of Rows	Contact Type	Contact Finish Thickness	Termination	Shell Material, Finish
EDAC Inc. 638-M26-632-BT2	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.76 Ám	30 Áin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	Housing/Shell (4-40)	-55 °C	125 °C	Shielded	Free Hanging (In-Line)	26	UL94 V-0	D-Sub High Density	3	Signal
EDAC Inc. 638-M26-230-BN6	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black			Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40	-55 °C	125 °C	Board Lock Shielded	Through Hole	26	UL94 V-0	D-Sub High Density	3	Signal	Flash	Solder	Nickel Plated Steel
EDAC Inc. 638-M26-630-BN5	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.76 Ám	30 Áin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Board Lock Shielded	Through Hole	26	UL94 V-0	D-Sub High Density	3	Signal		Solder	Nickel Plated Steel
EDAC Inc. 638-M26-332-BN5	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.38 µm	15 µin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Board Lock Shielded	Free Hanging (In-Line)	26	UL94 V-0	D-Sub High Density	3	Signal			Nickel Plated Steel
EDAC Inc. 638-M26-230-BN5	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black			Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Board Lock Shielded	Through Hole	26	UL94 V-0	D-Sub High Density	3	Signal	Flash	Solder	Nickel Plated Steel
EDAC Inc. 638-M26-332-BN3	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.38 µm	15 µin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Shielded	Free Hanging (In-Line)	26	UL94 V-0	D-Sub High Density	3	Signal			Nickel Plated Steel
EDAC Inc. 638-M26-632-BN4	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.76 Ám	30 Áin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40	-55 °C	125 °C	Shielded	Free Hanging (In-Line)	26	UL94 V-0	D-Sub High Density	3	Signal			Nickel Plated Steel
EDAC Inc. 638-M26-632-BT4	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.76 Ám	30 Áin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40	-55 °C	125 °C	Shielded	Free Hanging (In-Line)	26	UL94 V-0	D-Sub High Density	3	Signal
EDAC Inc. 638-M26-232-BN2	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black			Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	Housing/Shell (4-40)	-55 °C	125 °C	Shielded	Free Hanging (In-Line)	26	UL94 V-0	D-Sub High Density	3	Signal	Flash		Nickel Plated Steel
EDAC Inc. 638-M26-630-BT5	5 A	2	(DA A) High Density	Receptacle Female Sockets	Black	0.76 Ám	30 Áin	Gold	Polyamide (PA9T) Nylon 9T	Copper Alloy	4-40 Board Side	-55 °C	125 °C	Board Lock Shielded	Through Hole	26	UL94 V-0	D-Sub High Density	3	Signal		Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 10.17

Description

General part information

638-M26 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
