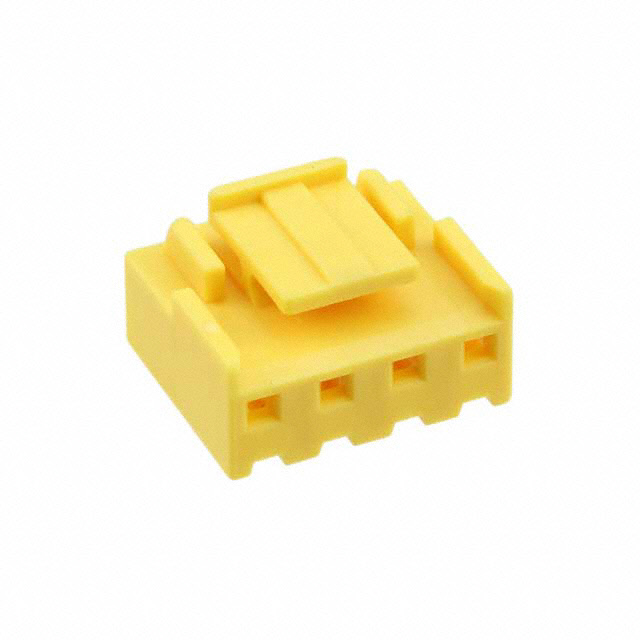

2-1123722-4

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 4POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-1123722-4

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 4POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1123722-4

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

1123722 Series

Part	Number of Positions	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Type	Insulation Material	Connector Type	Contact Termination	Note	Color	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 6-1123722-2	2	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Male Pin	Glass Filled Nylon Polyamide (PA)	Plug	Crimp	Contacts Not Included	Green	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 3-1123722-5		Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Blue	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 1-1123722-4	4	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Natural	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 2-1123722-4	4	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Yellow	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 7-1123722-2	2	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Natural	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 1-1123722-0	10	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Natural	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 5-1123722-6	6	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Black	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 2-1123722-9	9	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Yellow	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 5-1123722-7	7	Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Black	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 7-1123722-5		Free Hanging (In-Line)	1	-25 °C	105 ░C	Latch Lock	Female Socket	Polyamide (PA66) Nylon 6/6	Plug	Crimp	Contacts Not Included	Natural	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.17
		10	$ 0.14
		25	$ 0.13
		50	$ 0.12
		100	$ 0.12
		250	$ 0.11
		500	$ 0.10
		2000	$ 0.10
		4000	$ 0.09

Description

General part information

1123722 Series

4 Rectangular Connectors - Housings Plug Yellow 0.156" (3.96mm)
