1-1123722-0

Active

TE Connectivity AMP Connectors

3.96 EP PLUG HSG 10P(NATURAL)

1-1123722-0

Active

TE Connectivity AMP Connectors

3.96 EP PLUG HSG 10P(NATURAL)

Description Specifications Series Pricing CAD Documents

Description

General part information

1123722 Series

10 Position, Plug, Housing, Crimp, Wire-to-Board, UL 94V-0, 3.96 mm [.156 in] Centerline, 1 Row, 250 VAC, Wire & Cable, Power & Signal, Economy Power

Technical Specifications

Parameters and characteristics for this part

Specification	1-1123722-0

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Pitch	0.156 in

1123722 Series

Part	Note	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Material	Number of Rows	Number of Positions	Color	Connector Type	Pitch	Fastening Type	Contact Type	Contact Termination
TE Connectivity AMP Connectors 6-1123722-2	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Glass Filled Nylon Polyamide (PA)	1	2	Green	Plug	0.156 in	Latch Lock	Male Pin	Crimp
TE Connectivity AMP Connectors 3-1123722-5	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	5	Blue	Plug	0.156 in	Latch Lock	Female Socket	Crimp
TE Connectivity AMP Connectors 1-1123722-4	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	4	Natural	Plug	0.156 in	Latch Lock	Female Socket	Crimp

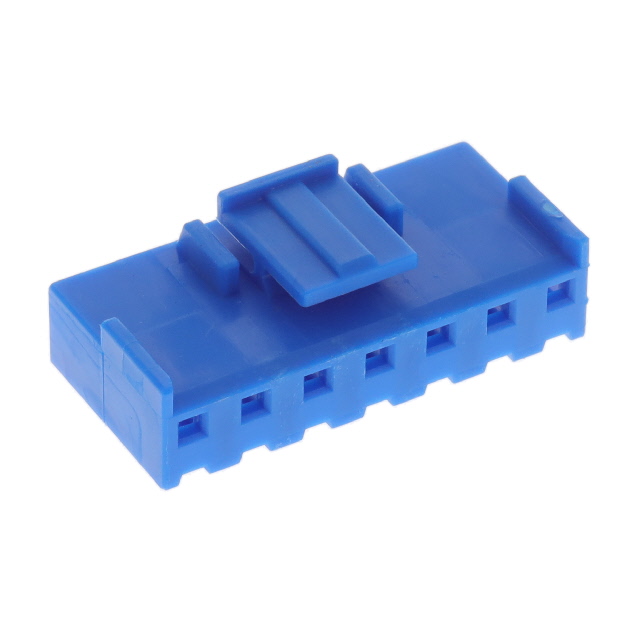

TE Connectivity AMP Connectors 3-1123722-7	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	7	Blue	Plug	0.156 in	Latch Lock	Female Socket	Crimp

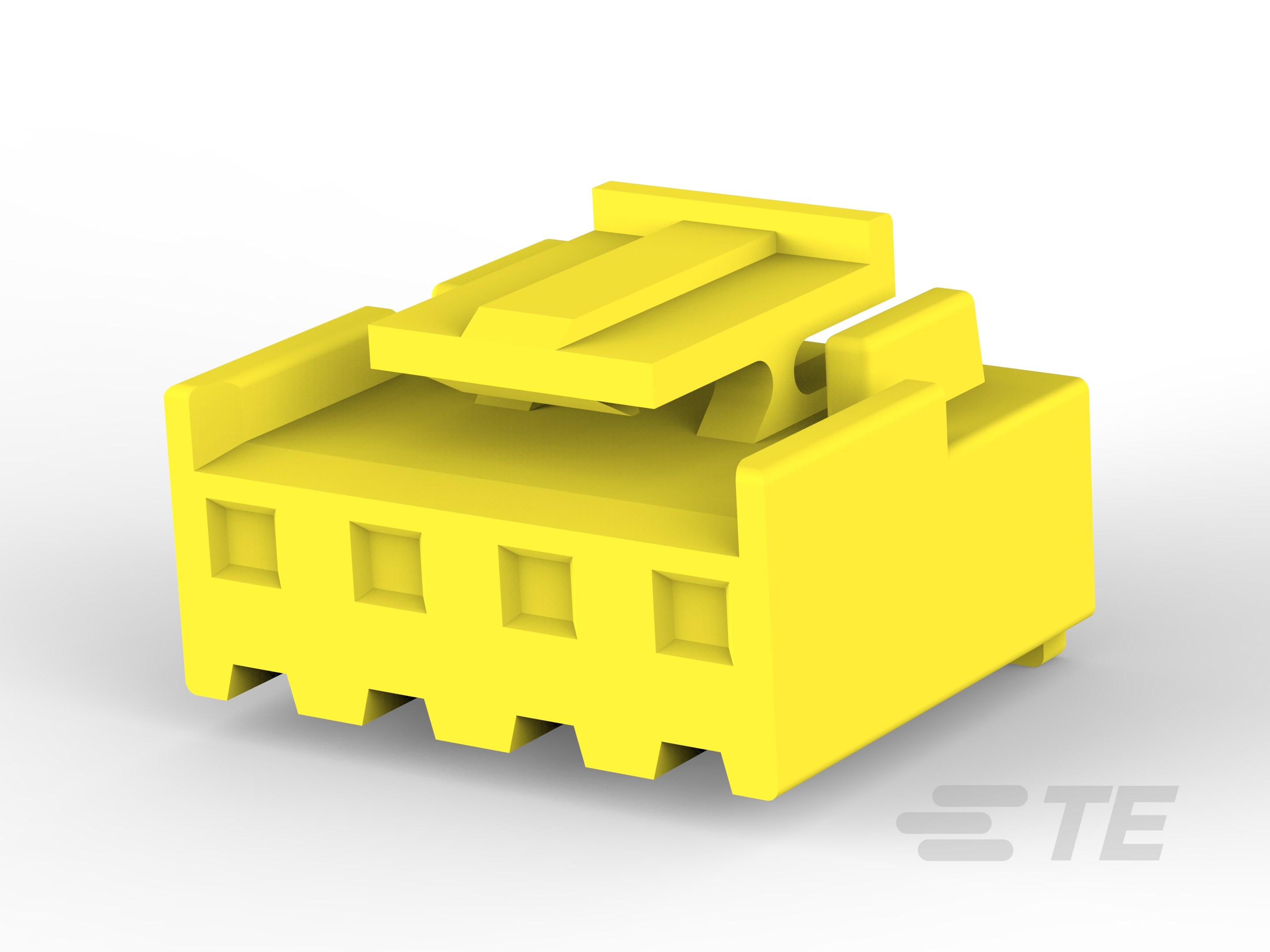

TE Connectivity AMP Connectors 2-1123722-4	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	4	Yellow	Plug	0.156 in	Latch Lock	Female Socket	Crimp
TE Connectivity AMP Connectors 6-1123722-4	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Glass Filled Nylon Polyamide (PA)	1	4	Green	Plug	0.156 in	Latch Lock	Female Socket	Crimp

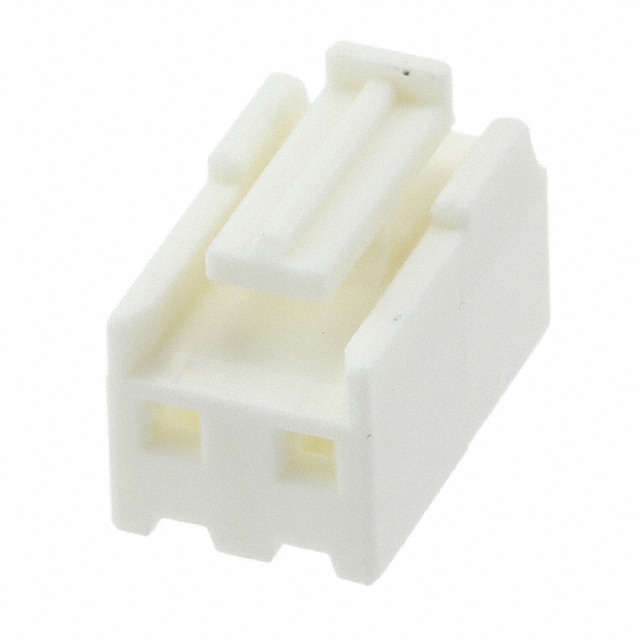

TE Connectivity AMP Connectors 7-1123722-2	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	2	Natural	Plug	0.156 in	Latch Lock	Female Socket	Crimp
TE Connectivity AMP Connectors 1-1123722-0	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	10	Natural	Plug	0.156 in	Latch Lock	Female Socket	Crimp
TE Connectivity AMP Connectors 5-1123722-6	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	6	Black	Plug	0.156 in	Latch Lock	Female Socket	Crimp
TE Connectivity AMP Connectors 2-1123722-9	Contacts Not Included	Free Hanging (In-Line)	105 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	1	9	Yellow	Plug	0.156 in	Latch Lock	Female Socket	Crimp
