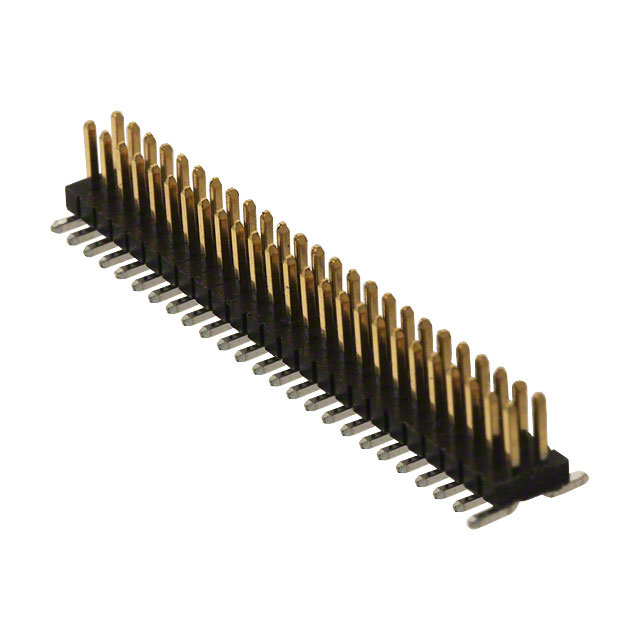

M50-3602542

Active

Harwin Inc.

CONN HEADER SMD 50POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M50-3000345 +2

M50-3602542

Active

Harwin Inc.

CONN HEADER SMD 50POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet M50-3000345 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3602542

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	2.5 µm
Contact Finish Thickness - Post	98.4 µin
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.039 "
Insulation Height	1 mm
Insulation Material	Thermoplastic
Mated Stacking Heights	6.18 mm, 3.9 mm, 5.3 mm, 7 mm, 6.08 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M50-360 Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Style	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Contact Type	Number of Rows	Insulation Material	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Number of Positions	Contact Shape	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Material Flammability Rating	Features
Harwin Inc. M50-3602542	0.05 in	1.27 mm	Gold	Board to Board Cable	Black	0.05 in	1.27 mm	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Male Pin	2	Thermoplastic	Push-Pull	All	2.5 µm	98.4 µin	Copper Alloy	Tin	3 mm	0.118 in	-40 °C	105 ░C	Header	Surface Mount	50	Square	Unshrouded	3 µin	0.076 µm	0.039 "	1 mm	Solder	UL94 V-0
Harwin Inc. M50-3602042	0.05 in	1.27 mm	Gold	Board to Board Cable	Black	0.05 in	1.27 mm	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Male Pin	2	Thermoplastic	Push-Pull	All	2.5 µm	98.4 µin	Copper Alloy	Tin	3 mm	0.118 in	-40 °C	105 ░C	Header	Surface Mount	40	Square	Unshrouded	3 µin	0.076 µm	0.039 "	1 mm	Solder	UL94 V-0
Harwin Inc. M50-3601042R	0.05 in	1.27 mm	Gold	Board to Board Cable	Black	0.05 in	1.27 mm	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Male Pin	2	Thermoplastic	Push-Pull	All	2.5 µm	98.4 µin	Copper Alloy	Tin	3 mm	0.118 in	-40 °C	105 ░C	Header	Surface Mount	20	Square	Unshrouded	3 µin	0.076 µm	0.039 "	1 mm	Solder	UL94 V-0	Pick and Place
Harwin Inc. M50-3602542R	0.05 in	1.27 mm	Gold	Board to Board Cable	Black	0.05 in	1.27 mm	3.9 mm 5.3 mm 6.08 mm 6.18 mm	Male Pin	2	Thermoplastic	Push-Pull	All	2.5 µm	98.4 µin	Copper Alloy	Tin	3 mm	0.118 in	-40 °C	105 ░C	Header	Surface Mount	50	Square	Unshrouded	3.15 µin	0.08 µm	0.039 "	1 mm	Solder	UL94 V-0	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.43
		10	$ 4.92
		100	$ 3.82
		500	$ 3.23
		1000	$ 3.02

Description

General part information

M50-360 Series

Connector Header Surface Mount 50 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Datasheet

M50-3000345

M50-3530842

M50,M52 Series Spec Sheet

Datasheet
