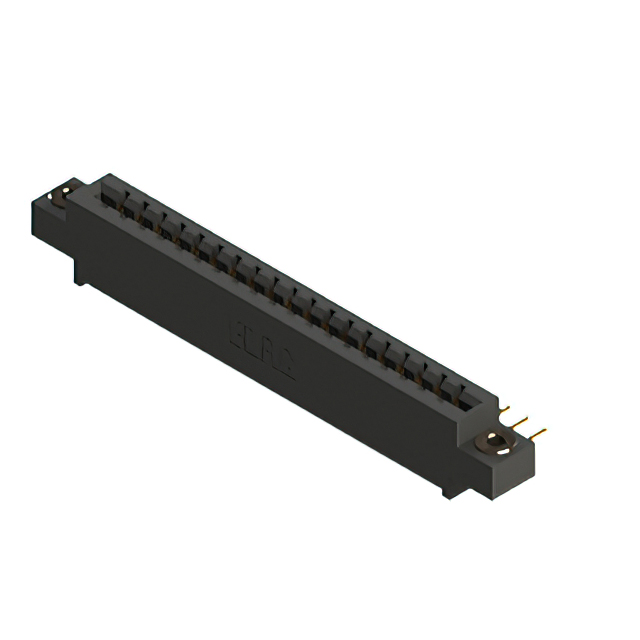

387-019-559-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-019-559-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 19POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-019-559-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
387-019 Series
...
| Part | Contact Material | Pitch [x] | Pitch [x] | Card Type | Material - Insulation | Flange Feature | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Number of Positions/Bay/Row [custom] | Gender | Termination | Contact Finish | Color | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | ||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | Floating Bobbin Top Mount Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | 2.95 mm | 0.116 in |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | |||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | Top Mount Opening Unthreaded | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | 3.96 mm | 0.156 in |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | Floating Bobbin Flush Mount | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Solder | Gold | Black | 19 | 2.95 mm | 0.116 in |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | 3.25 mm | 0.128 " |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | Top Mount Opening Unthreaded | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | 3.96 mm | 0.156 in |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | ||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Wire Wrap | Gold | Black | 19 | ||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | Cantilever | 1 | 19 | Female | Solder | Gold | Black | 19 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
