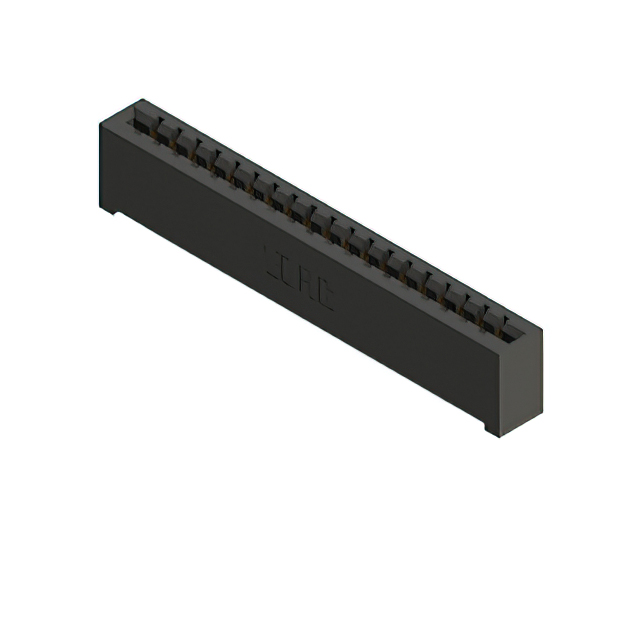

CONN EDGE SGL FMALE 19POS 0.156

Connectors, Interconnects

387-019-544-101

Active

EDAC Inc.

CONN EDGE SGL FMALE 19POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	387-019-544-101

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	19
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

387-019 Series

...

Part	Termination	Flange Feature	Color	Pitch	Gender	Number of Positions	Contact Finish	Number of Rows	Contact Type	Card Type	Contact Finish Thickness	Mounting Type	Read Out	Operating Temperature (Min)	Operating Temperature (Max)	Card Thickness (Min)	Card Thickness (Max)	Contact Material	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 387-019-541-607	Wire Wrap	M3 Threaded Insert Top Mount Opening	Black	0.156 in	Female	19	Gold	1	Cantilever	Non Specified Single Edge	10 Ąin	Through Hole	Single	-40 °C	105 °C	0.054 in	0.07 in	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 387-019-558-104	Wire Wrap	Flush Mount Top Opening Unthreaded	Black	0.156 in	Female	19	Gold	1	Cantilever	Non Specified Single Edge	10 Ąin	Right Angle Through Hole	Single	-40 °C	105 °C	0.054 in	0.07 in	Copper Alloy	Polyester Thermoplastic	1 rows	0.156 in
EDAC Inc. 387-019-524-612	Solder	Side Mount Opening Unthreaded	Black	0.156 in	Female	19	Gold	1	Cantilever	Non Specified Single Edge	10 Ąin	Through Hole	Single	-40 °C	105 °C	0.054 in	0.07 in	Copper Alloy	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 387-019-559-603	Wire Wrap	Floating Bobbin Top Mount Opening	Black	0.156 in	Female	19	Gold	1	Cantilever	Non Specified Single Edge	10 Ąin	Right Angle Through Hole	Single	-40 °C	105 °C	0.054 in	0.07 in	Copper Alloy	Polyester Thermoplastic	1 rows	0.116 in
EDAC Inc. 387-019-544-101	Wire Wrap		Black	0.156 in	Female	19	Gold	1	Cantilever	Non Specified Single Edge	10 Ąin	Through Hole	Single	-40 °C	105 °C	0.054 in	0.07 in	Copper Alloy	Polyester Thermoplastic	1 rows
