TSM-119-02-T-SH-P

Active

Samtec Inc.

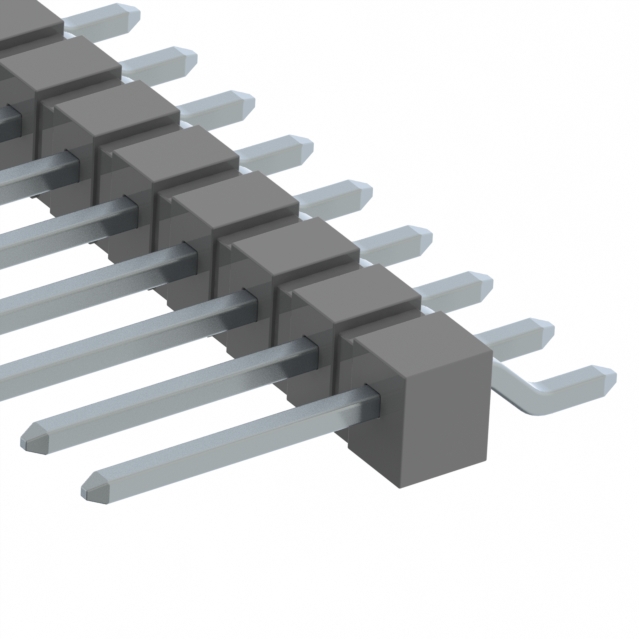

CONN HEADER SMD R/A 19POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-119-02-T-SH-P

Active

Samtec Inc.

CONN HEADER SMD R/A 19POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-119-02-T-SH-P

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-119 Series

Part	Contact Type	Pitch - Mating	Pitch - Mating	Style	Mounting Type	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Features	Shrouding	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Material	Contact Shape	Insulation Color	Number of Positions	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Fastening Type	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-119-01-L-SH-A-P	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount Right Angle	3.05 mm	0.12 in	Solder	Tin	Board Guide Pick and Place	Unshrouded	Phosphor Bronze	10 çin	0.25 çm	All	Liquid Crystal Polymer (LCP)	Square	Black	19	UL94 V-0	0.23 in	5.84 mm	1	-55 °C	125 °C	Header	Gold	Push-Pull
Samtec Inc. TSM-119-04-T-SH-A	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount Right Angle	3.05 mm	0.12 in	Solder	Tin	Board Guide	Unshrouded	Phosphor Bronze			All	Liquid Crystal Polymer (LCP)	Square	Black	19	UL94 V-0		3.05 mm	1	-55 °C	105 ░C	Header		Push-Pull	0.12 in
Samtec Inc. TSM-119-03-F-SH-A-K-TR	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount Right Angle	3.05 mm	0.12 in	Solder	Tin	Board Guide Pick and Place	Unshrouded	Phosphor Bronze	3 µin	0.076 µm	All	Liquid Crystal Polymer (LCP)	Square	Black	19	UL94 V-0		10.67 mm	1	-55 °C	125 °C	Header	Gold	Push-Pull	0.42 in
Samtec Inc. TSM-119-03-G-DV-A	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount	2.54 mm	0.1 in	Solder	Gold	Board Guide	Unshrouded	Phosphor Bronze	10 çin	0.25 çm	All	Liquid Crystal Polymer (LCP)	Square	Black	38	UL94 V-0		10.67 mm	2	-55 °C	125 °C	Cuttable Header	Gold	Push-Pull	0.42 in	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. TSM-119-01-L-DV-A	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount	2.54 mm	0.1 in	Solder	Tin	Board Guide	Unshrouded	Phosphor Bronze	10 çin	0.25 çm	All	Liquid Crystal Polymer (LCP)	Square	Black	38	UL94 V-0	0.23 in	5.84 mm	2	-55 °C	125 °C	Cuttable Header	Gold	Push-Pull		2.54 mm	0.1 in
Samtec Inc. TSM-119-02-T-SH	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount Right Angle	3.05 mm	0.12 in	Solder	Tin		Unshrouded	Phosphor Bronze			All	Liquid Crystal Polymer (LCP)	Square	Black	19	UL94 V-0		8.13 mm	1	-55 °C	105 ░C	Header		Push-Pull	0.32 in
Samtec Inc. TSM-119-01-S-DV-P	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount	2.54 mm	0.1 in	Solder	Tin	Pick and Place	Unshrouded	Phosphor Bronze	30 Áin	0.76 Ám	All	Liquid Crystal Polymer (LCP)	Square	Black	38	UL94 V-0	0.23 in	5.84 mm	2	-55 °C	125 °C	Cuttable Header	Gold	Push-Pull		2.54 mm	0.1 in
Samtec Inc. TSM-119-02-T-SH-P	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount Right Angle	3.05 mm	0.12 in	Solder	Tin	Pick and Place	Unshrouded	Phosphor Bronze			All	Liquid Crystal Polymer (LCP)	Square	Black	19	UL94 V-0		8.13 mm	1	-55 °C	105 ░C	Header		Push-Pull	0.32 in
Samtec Inc. TSM-119-01-T-SV-P-TR	Male Pin	0.1 in	2.54 mm	Board to Board Cable	Surface Mount	2.54 mm	0.1 in	Solder	Tin	Pick and Place	Unshrouded	Phosphor Bronze			All	Liquid Crystal Polymer (LCP)	Square	Black	19	UL94 V-0	0.23 in	5.84 mm	1	-55 °C	105 ░C	Cuttable Header		Push-Pull
Samtec Inc. TSM-119-02-T-SV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 2.53

Description

General part information

TSM-119 Series

Connector Header Surface Mount, Right Angle 19 position 0.100" (2.54mm)
