Specification	LSEM-120-06.0-F-DV-A-N-TR

Connector Type	Non-Gendered, Hermaphroditic, Self Mating
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Features	Board Guide
Height Above Board	0.293 in
Mated Stacking Height Options	10mm, 9mm, 12mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch	0.031 in

LSEM Series

Board to Board & Mezzanine Connectors 0.80 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Part	Height Above Board	Number of Rows	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Finish	Mated Stacking Height Options	Features	Number of Positions	Pitch
Samtec Inc. LSEM-120-04.0-F-DV-A-N-K-TR	0.215 in	2	Surface Mount	Hermaphroditic Non-Gendered Self Mating	0	Flash	Flash	Gold	10mm 7mm 8mm	Pick and Place	40	0.031 in

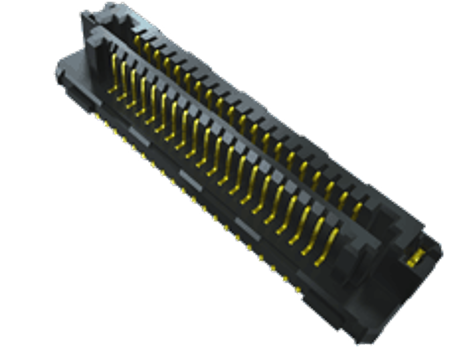

Samtec Inc. LSEM-140-04.0-L-DV-A-N-TR	0.215 in	2	Surface Mount	Hermaphroditic Non-Gendered Self Mating	10 Ąin			Gold	10mm 7mm 8mm	Board Guide	80	0.031 in
Samtec Inc. LSEM-140-03.0-F-DV-A-N-TR	0.175 in	2	Surface Mount	Hermaphroditic Non-Gendered Self Mating	0	Flash	Flash	Gold	6mm 7mm 9mm	Board Guide	80	0.031 in
Samtec Inc. LSEM-120-06.0-F-DV-A-N-TR	0.293 in	2	Surface Mount	Hermaphroditic Non-Gendered Self Mating	0	Flash	Flash	Gold	10mm 12mm 9mm	Board Guide	40	0.031 in
Samtec Inc. LSEM-130-01-F-DH-A-N-K-TR	0.202 in	2	Right Angle Surface Mount	Hermaphroditic Non-Gendered Self Mating	0	Flash	Flash	Gold		Board Guide Pick and Place	60	0.031 in
Samtec Inc. LSEM-120-01-F-DH-A-N-K-TR	0.202 in	2	Right Angle Surface Mount	Hermaphroditic Non-Gendered Self Mating	0	Flash	Flash	Gold		Board Guide Pick and Place	40	0.031 in
