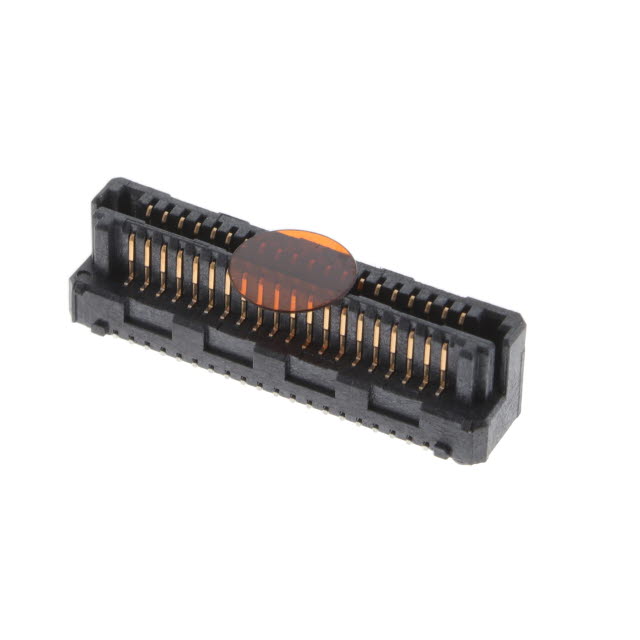

LSEM-120-04.0-F-DV-A-N-K-TR

Active

Samtec Inc.

CONN SELF-MATE 40POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SELF-MATE 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LSEM-120-04.0-F-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Pick and Place
Height Above Board	0.215 in
Height Above Board	5.46 mm
Mated Stacking Heights	8 mm, 10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Connector Type	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Height Above Board
Samtec Inc. LSEM-120-04.0-F-DV-A-N-K-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Surface Mount	0.215 in	5.46 mm	40	Flash	0.8 mm	0.031 in	Pick and Place	7 mm 8 mm 10 mm	2
Samtec Inc. LSEM-120-06.0-L-DV-A-N-K-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Surface Mount			40		0.8 mm	0.031 in	Board Guide Pick and Place	9 mm 10 mm 12 mm	2	10 Áin	0.25 Ám	7.45 mm	0.293 in
Samtec Inc. LSEM-120-03.0-L-DV-A-N	Self Mating Non-Gendered Hermaphroditic	Gold	Surface Mount	4.45 mm		40		0.8 mm	0.031 in	Board Guide	6 mm 7 mm 9 mm	2	10 Áin	0.25 Ám			0.175 in
Samtec Inc. LSEM-120-03.0-F-DV-A-N-K-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Surface Mount	4.45 mm		40	Flash	0.8 mm	0.031 in	Pick and Place	6 mm 7 mm 9 mm	2					0.175 in
Samtec Inc. LSEM-120-04.0-L-DV-A-N	Self Mating Non-Gendered Hermaphroditic	Gold	Surface Mount	0.215 in	5.46 mm	40		0.8 mm	0.031 in	Board Guide	7 mm 8 mm 10 mm	2	10 Áin	0.25 Ám
Samtec Inc. LSEM-120-01-F-DH-A-N-K-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Surface Mount Right Angle	5.13 mm		40	Flash	0.8 mm	0.031 in	Board Guide Pick and Place		2					0.202 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
