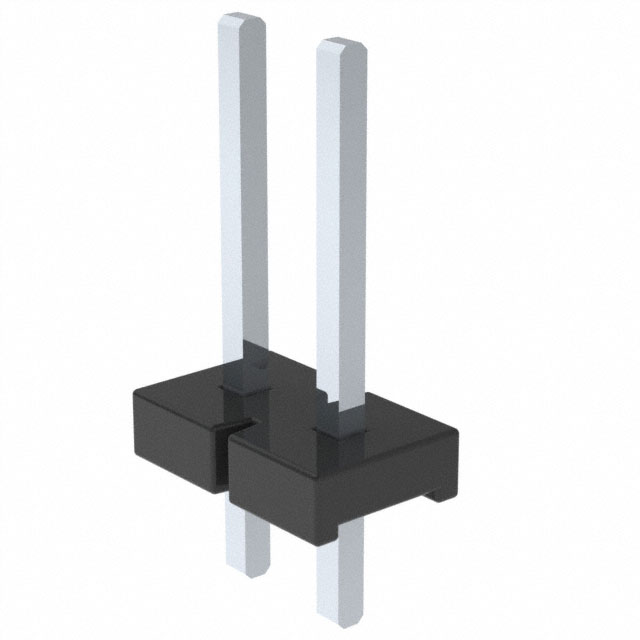

HPM-02-02-T-S

Active

Samtec Inc.

CONN HEADER VERT 2POS 5.08MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 2POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	HPM-02-02-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	13.21 mm
Contact Length - Mating [x]	0.52 in
Contact Length - Post	0.18 in
Contact Length - Post	4.57 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.8 in
Overall Contact Length	20.32 mm
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	1200 VDC, 850 VAC

Part	Mounting Type	Insulation Height	Insulation Height	Insulation Color	Termination	Contact Material	Number of Positions	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Shape	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Positions Loaded	Connector Type	Insulation Material	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Shrouding	Number of Rows	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Current Rating (Amps)
Samtec Inc. HPM-02-02-T-S	Through Hole	0.1 in	2.54 mm	Black	Solder	Copper Alloy	2	5.08 mm	0.2 in	850 VAC 1200 VDC	Square	Male Pin	105 ░C	-55 °C	0.8 in	20.32 mm	Tin	All	Header	Polybutylene Terephthalate (PBT)	UL94 V-0	13.21 mm	0.52 in	0.18 in	4.57 mm	Unshrouded	1	Push-Pull
Samtec Inc. HPM-02-04-TM-S	Through Hole	0.1 in	2.54 mm	Black	Solder	Copper Alloy	2	5.08 mm	0.2 in	850 VAC 1200 VDC	Square	Male Pin	105 ░C	-55 °C	1.091 "	27.71 mm	Tin	All	Header	Polybutylene Terephthalate (PBT)	UL94 V-0				4.09 mm	Unshrouded	1	Push-Pull	0.83 in	21.08 mm	0.161 in
Samtec Inc. HPM-02-04-T-S	Through Hole	0.1 in	2.54 mm	Black	Solder	Copper Alloy	2	5.08 mm	0.2 in	850 VAC 1200 VDC	Square	Male Pin	105 ░C	-55 °C	1.091 "	27.71 mm	Tin	All	Header	Polybutylene Terephthalate (PBT)	UL94 V-0				4.09 mm	Unshrouded	1	Push-Pull	0.83 in	21.08 mm	0.161 in	13.2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.19

General part information

Connector Header Through Hole 2 position 0.200" (5.08mm)
