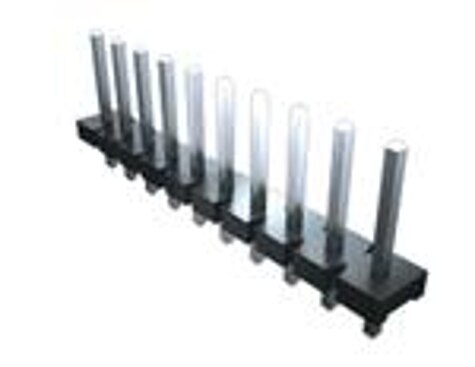

HPM-02 Series

Catalog

CONN HEADER VERT 2POS 5.08MM

Part	Mounting Type	Insulation Height	Insulation Height	Insulation Color	Termination	Contact Material	Number of Positions	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Shape	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Positions Loaded	Connector Type	Insulation Material	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Shrouding	Number of Rows	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Current Rating (Amps)
Samtec Inc. HPM-02-02-T-S	Through Hole	0.1 in	2.54 mm	Black	Solder	Copper Alloy	2	5.08 mm	0.2 in	850 VAC 1200 VDC	Square	Male Pin	105 ░C	-55 °C	0.8 in	20.32 mm	Tin	All	Header	Polybutylene Terephthalate (PBT)	UL94 V-0	13.21 mm	0.52 in	0.18 in	4.57 mm	Unshrouded	1	Push-Pull
Samtec Inc. HPM-02-04-TM-S	Through Hole	0.1 in	2.54 mm	Black	Solder	Copper Alloy	2	5.08 mm	0.2 in	850 VAC 1200 VDC	Square	Male Pin	105 ░C	-55 °C	1.091 "	27.71 mm	Tin	All	Header	Polybutylene Terephthalate (PBT)	UL94 V-0				4.09 mm	Unshrouded	1	Push-Pull	0.83 in	21.08 mm	0.161 in
Samtec Inc. HPM-02-04-T-S	Through Hole	0.1 in	2.54 mm	Black	Solder	Copper Alloy	2	5.08 mm	0.2 in	850 VAC 1200 VDC	Square	Male Pin	105 ░C	-55 °C	1.091 "	27.71 mm	Tin	All	Header	Polybutylene Terephthalate (PBT)	UL94 V-0				4.09 mm	Unshrouded	1	Push-Pull	0.83 in	21.08 mm	0.161 in	13.2 A
