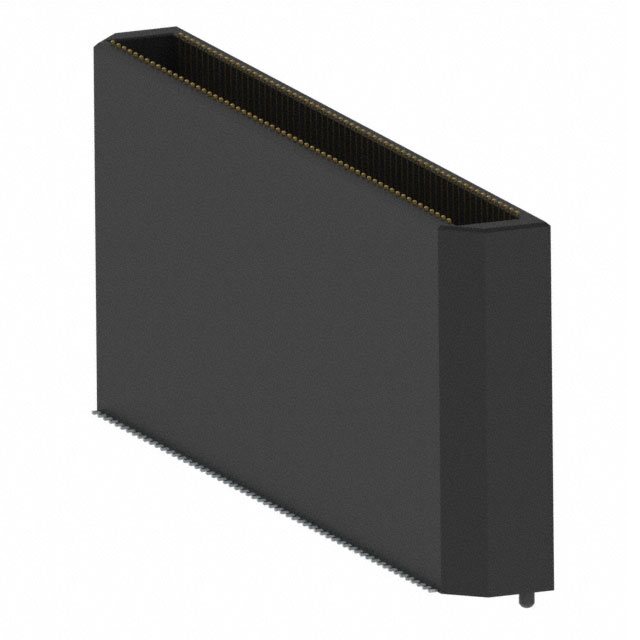

BTE-060-06-F-D-A

Active

Samtec Inc.

CONN HDR 120POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTE, BSE Series Datasheet Datasheet

BTE-060-06-F-D-A

Active

Samtec Inc.

CONN HDR 120POS SMD GOLD

Deep-Dive with AI

DocumentsBTE, BSE Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-060-06-F-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board [z]	0.837 "
Height Above Board [z]	21.26 mm
Mated Stacking Heights	22.02 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-060 Series

Part	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Finish	Mated Stacking Heights [z]	Number of Rows	Number of Positions	Features	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTE-060-02-F-D-A-K	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám	7.06 mm	0.278 "	Gold	8.03 mm	2	120	Board Guide	Surface Mount
Samtec Inc. BTE-060-01-L-D-EM2-GP	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám			Gold		2	120	Guide Pin	Board Edge Straddle Mount
Samtec Inc. BTE-060-04-L-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám	15.27 mm	0.601 in	Gold		2	120	Board Guide	Surface Mount	16.1 mm
Samtec Inc. BTE-060-04-F-D-A-K	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám	15.27 mm	0.601 in	Gold		2	120	Board Guide	Surface Mount	16.1 mm
Samtec Inc. BTE-060-01-L-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám	4.06 mm	0.16 in	Gold		2	120	Board Guide	Surface Mount	5.03 mm
Samtec Inc. BTE-060-01-L-D-EM2	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám			Gold		2	120		Board Edge Straddle Mount
Samtec Inc. BTE-060-04-F-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám	15.27 mm	0.601 in	Gold		2	120	Board Guide	Surface Mount	16.1 mm
Samtec Inc. BTE-060-06-F-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám			Gold		2	120	Board Guide	Surface Mount	22.02 mm	0.837 "	21.26 mm
Samtec Inc. BTE-060-01-L-D-A-K-TR	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám	4.06 mm	0.16 in	Gold		2	120	Board Guide	Surface Mount	5.03 mm
Samtec Inc. BTE-060-02-C-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	50 µin	1.27 µm	7.06 mm	0.278 "	Gold	8.03 mm	2	120	Board Guide	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	11	$ 15.78

Description

General part information

BTE-060 Series

120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

BTE, BSE Series Datasheet

Datasheet
