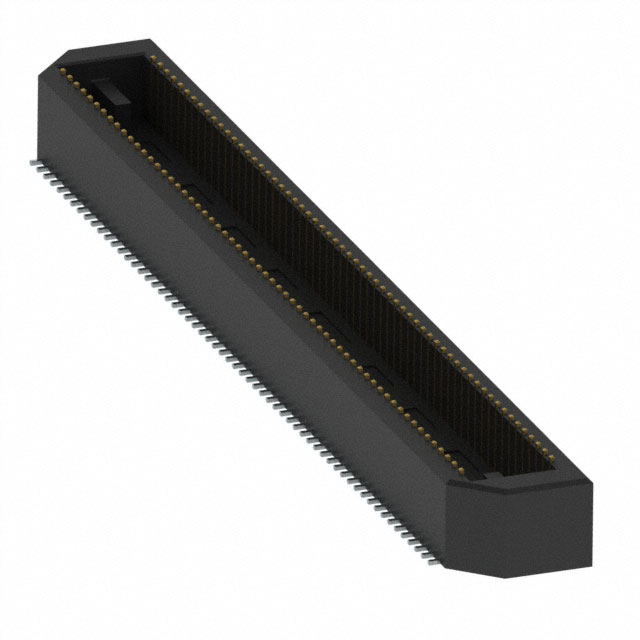

BTE-060-01-L-D-EM2

Active

Samtec Inc.

CONN HDR 120POS EDGE MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BTE-060-01-L-D-EM2

Active

Samtec Inc.

CONN HDR 120POS EDGE MNT GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-060-01-L-D-EM2

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mounting Type	Board Edge, Straddle Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-060 Series

Part	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Finish	Mated Stacking Heights [z]	Number of Rows	Number of Positions	Features	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTE-060-02-F-D-A-K	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám	7.06 mm	0.278 "	Gold	8.03 mm	2	120	Board Guide	Surface Mount
Samtec Inc. BTE-060-01-L-D-EM2-GP	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám			Gold		2	120	Guide Pin	Board Edge Straddle Mount
Samtec Inc. BTE-060-04-L-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám	15.27 mm	0.601 in	Gold		2	120	Board Guide	Surface Mount	16.1 mm
Samtec Inc. BTE-060-04-F-D-A-K	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám	15.27 mm	0.601 in	Gold		2	120	Board Guide	Surface Mount	16.1 mm
Samtec Inc. BTE-060-01-L-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám	4.06 mm	0.16 in	Gold		2	120	Board Guide	Surface Mount	5.03 mm
Samtec Inc. BTE-060-01-L-D-EM2	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám			Gold		2	120		Board Edge Straddle Mount
Samtec Inc. BTE-060-04-F-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám	15.27 mm	0.601 in	Gold		2	120	Board Guide	Surface Mount	16.1 mm
Samtec Inc. BTE-060-06-F-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	3 Áin	0.076 Ám			Gold		2	120	Board Guide	Surface Mount	22.02 mm	0.837 "	21.26 mm
Samtec Inc. BTE-060-01-L-D-A-K-TR	Header Outer Shroud Contacts	0.8 mm	0.031 in	10 Áin	0.25 Ám	4.06 mm	0.16 in	Gold		2	120	Board Guide	Surface Mount	5.03 mm
Samtec Inc. BTE-060-02-C-D-A	Header Outer Shroud Contacts	0.8 mm	0.031 in	50 µin	1.27 µm	7.06 mm	0.278 "	Gold	8.03 mm	2	120	Board Guide	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 13.73

Description

General part information

BTE-060 Series

120 Position Connector Header, Outer Shroud Contacts Board Edge, Straddle Mount Gold
