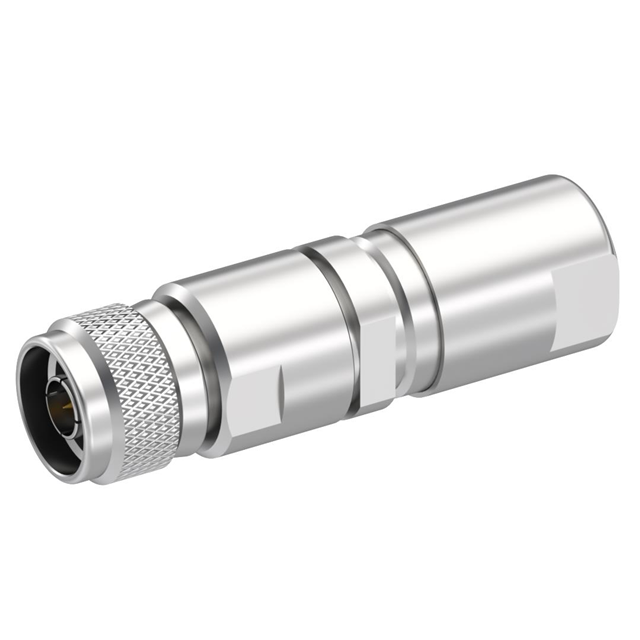

Specification	R161028000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-217
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insertion Loss	0.15 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Clamp
Voltage Rating	1400 V

R16102 Series

Part	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Insertion Loss	Mating Cycles	Body Finish	Body Material	Fastening Type	Impedance	Connector Style	Housing Color	Center Contact Material	Number of Ports	Contact Termination	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Cable Group	Frequency - Max	Shield Termination	Dielectric Material	Includes	Includes Total Count
Radiall USA, Inc. R161028000	Gold	155 °C	-55 °C	1400 V	0.15 dB	500 cycles	White Bronze	Brass	Threaded	50 Ohm	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Male Pin Plug	RG-217	11 GHz	Clamp
Radiall USA, Inc. R161022000	Gold	155 °C	-55 °C	1400 V		500 cycles		Brass	Threaded	50 Ohm	N Type		Brass	1	Solder	Free Hanging (In-Line)			Male Pin Plug		11 GHz	Clamp	Polytetrafluoroethylene (PTFE)	Braid Clamp Clamp Nut Connector Contact Gasket Sleeve Spacer Washer	9 pcs
Radiall USA, Inc. R161027000W	Gold	155 °C	-55 °C	1400 V	0.15 dB	500 cycles	White Bronze	Brass	Threaded	50 Ohm	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Male Pin Plug	RG-217	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161022000W	Gold	155 °C	-55 °C	335 V	0.15 dB	500 cycles	White Bronze	Brass	Threaded	50 Ohm	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Male Pin Plug	144 165 213 214 216 225 393 RG-11	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161027000	Gold	155 °C	-55 °C	1400 V	0.15 dB	500 cycles	White Bronze	Brass	Threaded	50 Ohm	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Male Pin Plug	RG-217	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161020000W	Gold	155 °C	-55 °C	1400 V	0.15 dB	500 cycles	White Bronze	Brass	Threaded	50 Ohm	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Male Pin Plug	144 165 213 214 216 225 393 RG-11	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161020000	Gold	155 °C	-55 °C	1400 V	0.15 dB	500 cycles	White Bronze	Brass	Threaded	50 Ohm	N Type	Silver	Brass	1	Solder	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Male Pin Plug	144 165 213 214 216 225 393 RG-11	11 GHz	Clamp	Polytetrafluoroethylene (PTFE)
