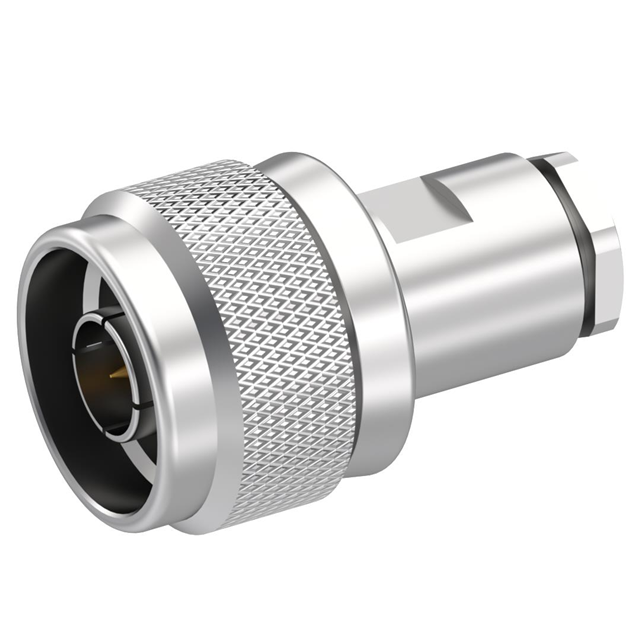

R161020000

Active

Radiall USA, Inc.

N / STRAIGHT PLUG CLAMP TYPE CAB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT PLUG CLAMP TYPE CAB

Technical Specifications

Parameters and characteristics for this part

Specification	R161020000

Body Finish	White Bronze
Body Material	Brass
Cable Group	144, 225, 214, 393, 165, 213, RG-11, 216
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	1400 V

Part	Center Contact Plating	Connector Style	Mating Cycles	Shield Termination	Impedance	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Housing Color	Center Contact Material	Connector Type	Insertion Loss	Voltage Rating	Ingress Protection	Frequency - Max [Max]	Cable Group	Body Material	Mounting Type	Body Finish	Dielectric Material
Radiall USA, Inc. R161028000	Gold	N Type	500	Clamp	50 Ohms	1	155 °C	-55 °C	Solder	Silver	Brass	Male Pin Plug	0.15 dB	1400 V	IP67 - Dust Tight Waterproof	11 GHz	RG-217	Brass	Free Hanging (In-Line)	White Bronze
Radiall USA, Inc. R161027000W	Gold	N Type	500	Clamp	50 Ohms	1	155 °C	-55 °C	Solder	Silver	Brass	Male Pin Plug	0.15 dB	1400 V	IP67 - Dust Tight Waterproof	11 GHz	RG-217	Brass	Free Hanging (In-Line)	White Bronze	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161022000W	Gold	N Type	500	Clamp	50 Ohms	1	155 °C	-55 °C	Solder	Silver	Brass	Male Pin Plug	0.15 dB	335 V	IP67 - Dust Tight Waterproof	11 GHz	144 165 213 214 216 225 393 RG-11	Brass	Free Hanging (In-Line)	White Bronze	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161027000	Gold	N Type	500	Clamp	50 Ohms	1	155 °C	-55 °C	Solder	Silver	Brass	Male Pin Plug	0.15 dB	1400 V	IP67 - Dust Tight Waterproof	11 GHz	RG-217	Brass	Free Hanging (In-Line)	White Bronze	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R161020000	Gold	N Type	500	Clamp	50 Ohms	1	155 °C	-55 °C	Solder	Silver	Brass	Male Pin Plug	0.15 dB	1400 V	IP67 - Dust Tight Waterproof	11 GHz	144 165 213 214 216 225 393 RG-11	Brass	Free Hanging (In-Line)	White Bronze	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
