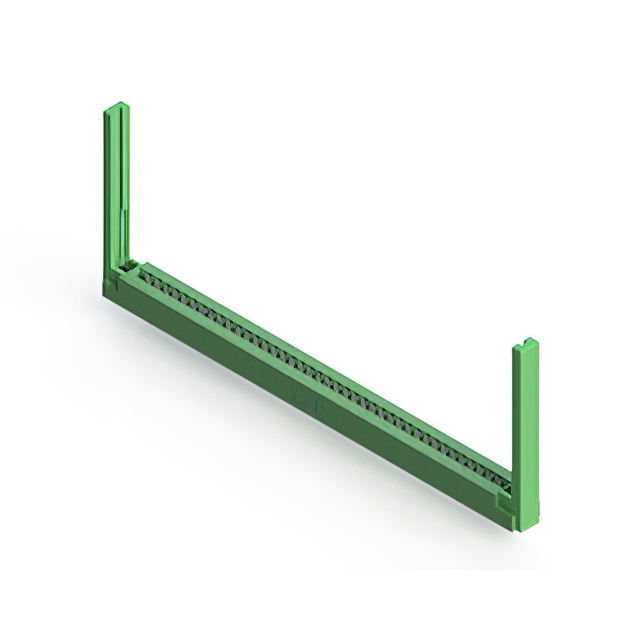

306-040-421-168

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

306-040-421-168

Active

EDAC Inc.

CONN EDGE DUAL FMALE 80POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-040-421-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-040 Series

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Features	Pitch [x]	Pitch [x]	Termination	Contact Type	Card Type	Gender	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Mounting Type	Termination Rows	Flange Feature	Contact Material	Read Out	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-040-520-178	Gold	-40 °C	105 ░C	Green	80	Card Guides	0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	Panel Mount Through Hole	1	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Dual	2
EDAC Inc. 306-040-521-104	Gold	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	Panel Mount Through Hole	1	Flush Mount Top Opening Unthreaded	Copper Alloy	Dual	2	3.96 mm	0.156 in
EDAC Inc. 306-040-521-102	Gold	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	Panel Mount Through Hole	1	Flush Mount Top Opening Unthreaded	Copper Alloy	Dual	2	3.25 mm	0.128 "
EDAC Inc. 306-040-520-112	Gold	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	Panel Mount Through Hole	1	Flush Mount Side Opening Unthreaded	Copper Alloy	Dual	2	3.25 mm	0.128 "
EDAC Inc. 306-040-400-107	Tin	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder Eyelet(s)	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic		1	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Dual	2
EDAC Inc. 306-040-420-168	Tin	-40 °C	105 ░C	Green	80	Card Guides	0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	Panel Mount Through Hole	1	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Dual	2
EDAC Inc. 306-040-420-112	Tin	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	Panel Mount Through Hole	1	Flush Mount Side Opening Unthreaded	Copper Alloy	Dual	2	3.25 mm	0.128 "
EDAC Inc. 306-040-520-102	Gold	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	Panel Mount Through Hole	1	Flush Mount Top Opening Unthreaded	Copper Alloy	Dual	2	3.25 mm	0.128 "
EDAC Inc. 306-040-421-168	Tin	-40 °C	105 ░C	Green	80	Card Guides	0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	Panel Mount Through Hole	1	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Dual	2
EDAC Inc. 306-040-420-104	Tin	-40 °C	105 ░C	Green	80		0.156 in	3.96 mm	Solder	Cantilever	Non Specified - Dual Edge	Female	40	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	Panel Mount Through Hole	1	Flush Mount Top Opening Unthreaded	Copper Alloy	Dual	2	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 23.39

Description

General part information

306-040 Series

80 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
