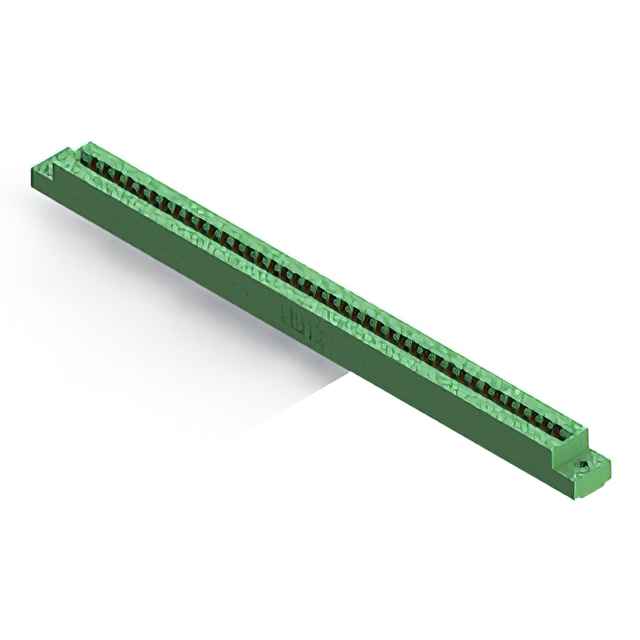

306-040-521-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
306-040-521-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-040-521-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-040 Series
| Part | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Features | Pitch [x] | Pitch [x] | Termination | Contact Type | Card Type | Gender | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Mounting Type | Termination Rows | Flange Feature | Contact Material | Read Out | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | -40 °C | 105 ░C | Green | 80 | Card Guides | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Panel Mount Through Hole | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Dual | 2 | ||
EDAC Inc. | Gold | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Panel Mount Through Hole | 1 | Flush Mount Top Opening Unthreaded | Copper Alloy | Dual | 2 | 3.96 mm | 0.156 in | |
EDAC Inc. | Gold | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Panel Mount Through Hole | 1 | Flush Mount Top Opening Unthreaded | Copper Alloy | Dual | 2 | 3.25 mm | 0.128 " | |
EDAC Inc. | Gold | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Panel Mount Through Hole | 1 | Flush Mount Side Opening Unthreaded | Copper Alloy | Dual | 2 | 3.25 mm | 0.128 " | |
EDAC Inc. | Tin | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder Eyelet(s) | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Dual | 2 | ||||||
EDAC Inc. | Tin | -40 °C | 105 ░C | Green | 80 | Card Guides | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Panel Mount Through Hole | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Dual | 2 | ||||
EDAC Inc. | Tin | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Panel Mount Through Hole | 1 | Flush Mount Side Opening Unthreaded | Copper Alloy | Dual | 2 | 3.25 mm | 0.128 " | |||
EDAC Inc. | Gold | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Panel Mount Through Hole | 1 | Flush Mount Top Opening Unthreaded | Copper Alloy | Dual | 2 | 3.25 mm | 0.128 " | |
EDAC Inc. | Tin | -40 °C | 105 ░C | Green | 80 | Card Guides | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Panel Mount Through Hole | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Dual | 2 | ||||
EDAC Inc. | Tin | -40 °C | 105 ░C | Green | 80 | 0.156 in | 3.96 mm | Solder | Cantilever | Non Specified - Dual Edge | Female | 40 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Panel Mount Through Hole | 1 | Flush Mount Top Opening Unthreaded | Copper Alloy | Dual | 2 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-040 Series
80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
