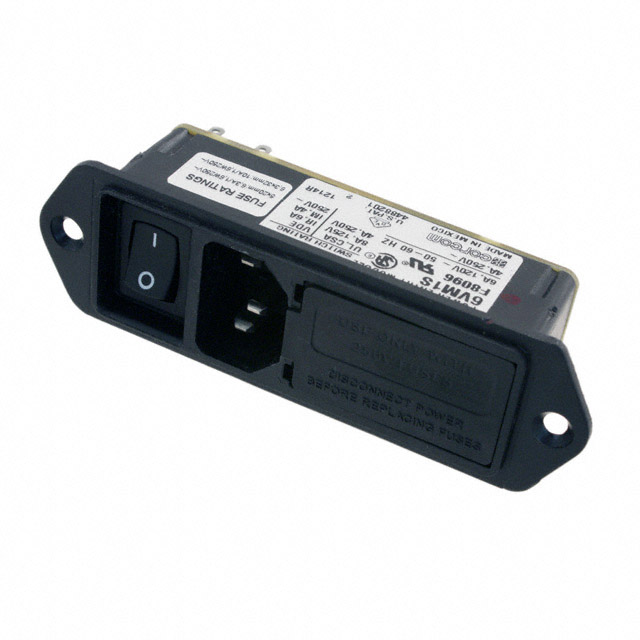

6VM1S

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Specification	6VM1S	6VM Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Features	-	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Snap-In
Panel Cutout Dimensions [x]	83.06 mm	63.25 - 83.06 mm
Panel Cutout Dimensions [y]	29.21 mm	28.96 - 29.21 mm
Panel Thickness	-	0.06 in
Panel Thickness	-	0.09 in
Panel Thickness	-	2.29 mm
Panel Thickness	-	1.52 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part	Current Rating - Filter	Connector Style	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Mounting Type	Filter Type	Termination	Connector Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Switch Features	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Features
TE Connectivity Corcom Filters 6VM1S	6 A	IEC 320-C14	Fuse Holder	6 A	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	29.21 mm	83.06 mm	CSA, UL, VDE	Switch On-Off
TE Connectivity Corcom Filters 6VM4C	6 A	IEC 320-C14	Fuse Holder	6 A	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	29.21 mm	75.44 mm	CSA, UL, VDE		0.06 in	0.09 in	2.29 mm	1.52 mm	Voltage Selector
TE Connectivity Corcom Filters 6VM1	6 A	IEC 320-C14	Fuse Holder	6 A	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	28.96 mm	63.25 mm	CSA, UL, VDE
TE Connectivity Corcom Filters 6VM1C	6 A	IEC 320-C14	Fuse Holder	6 A	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	28.96 mm	63.25 mm	CSA, UL, VDE		0.06 in	0.09 in	2.29 mm	1.52 mm
