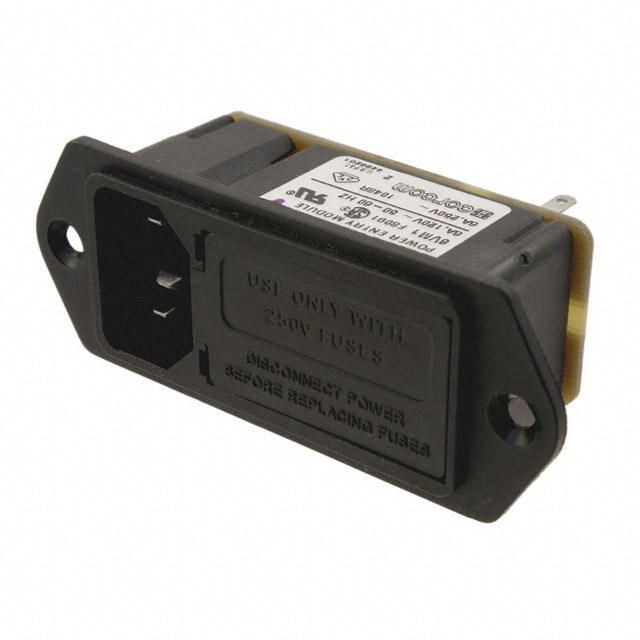

6VM1

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6VM1	6VM Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Features	-	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Snap-In
Panel Cutout Dimensions [x]	63.25 mm	63.25 - 83.06 mm
Panel Cutout Dimensions [y]	28.96 mm	28.96 - 29.21 mm
Panel Thickness	-	0.06 in
Panel Thickness	-	0.09 in
Panel Thickness	-	2.29 mm
Panel Thickness	-	1.52 mm
Switch Features	-	Switch On-Off
Termination	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Connector Style	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Mounting Type	Filter Type	Termination	Connector Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Switch Features	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Features
TE Connectivity Corcom Filters 6VM1S	6 A	IEC 320-C14	Fuse Holder	6 A	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	29.21 mm	83.06 mm	CSA, UL, VDE	Switch On-Off
TE Connectivity Corcom Filters 6VM4C	6 A	IEC 320-C14	Fuse Holder	6 A	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	29.21 mm	75.44 mm	CSA, UL, VDE		0.06 in	0.09 in	2.29 mm	1.52 mm	Voltage Selector
TE Connectivity Corcom Filters 6VM1	6 A	IEC 320-C14	Fuse Holder	6 A	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	28.96 mm	63.25 mm	CSA, UL, VDE
TE Connectivity Corcom Filters 6VM1C	6 A	IEC 320-C14	Fuse Holder	6 A	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	Quick Connect - 0.110" (2.8mm)	Receptacle, Male Blades - Module	120 VAC	28.96 mm	63.25 mm	CSA, UL, VDE		0.06 in	0.09 in	2.29 mm	1.52 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
