117-43-656-41-005000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 56POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

117-43-656-41-005000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 56POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	117-43-656-41-005000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	56
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.07 in
Pitch - Mating	1.78 mm
Pitch - Post	0.07 in
Pitch - Post	1.78 mm
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

117-43 Series

Part	Housing Material	Contact Finish - Post	Termination Post Length	Termination Post Length	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Post	Pitch - Post	Contact Material - Mating	Features	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Type	Type	Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 117-43-664-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	64	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-640-61-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	40	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C	20	2
Mill-Max Manufacturing Corp. 117-43-648-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	48	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-428-61-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	28	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.4 in	10.16 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-428-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	28	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.4 in	10.16 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-656-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	56	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-764-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	64	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.75 in	19.05 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-640-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	40	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C	20	2
Mill-Max Manufacturing Corp. 117-43-620-41-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	20	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C
Mill-Max Manufacturing Corp. 117-43-656-61-005000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	3.18 mm	0.125 in	Brass Alloy	30 Áin	0.76 Ám	56	Through Hole	Gold	200 µin	5.08 µm	Solder	0.07 in	1.78 mm	Beryllium Copper	Open Frame	0.07 in	1.78 mm	UL94 V-0	DIP	0.6 in	15.24 mm	3 A	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 8.70

Description

General part information

117-43 Series

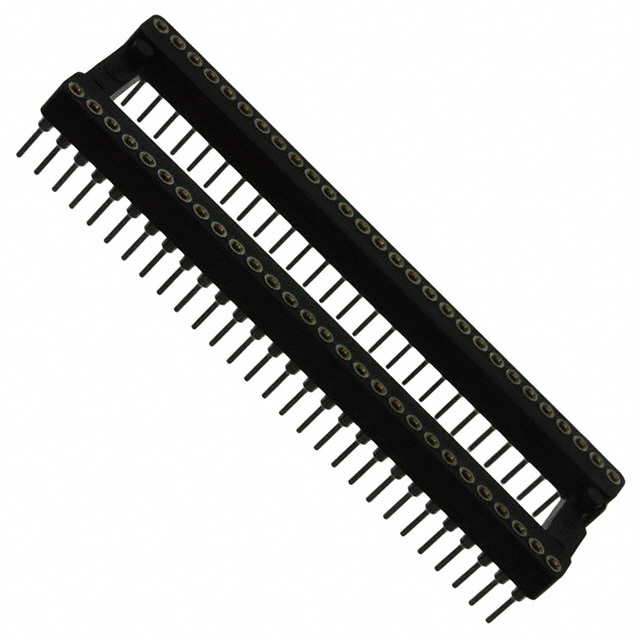

56 (2 x 28) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
