1211-40116

Active

Amphenol SV Microwave

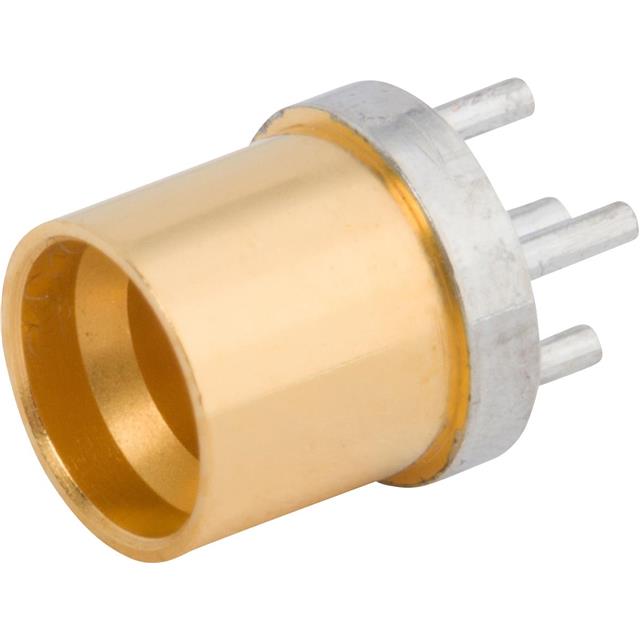

SMP MALE PCB THRU-HOLE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Board to Board Brochure

1211-40116

Active

Amphenol SV Microwave

SMP MALE PCB THRU-HOLE CONNECTOR

Deep-Dive with AI

DocumentsDatasheet Board to Board Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1211-40116

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent, Pre-Tinned
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

1211-40 Series

Part	Fastening Type	Center Contact Plating	Mounting Type	Body Finish	Connector Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Shield Termination	Body Material	Dielectric Material	Features	Mating Cycles	Housing Color	Contact Termination	Center Contact Material	Frequency - Max [Max]
Amphenol SV Microwave 1211-40087	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Pre-Tinned (J-STD-001) Smooth Bore	1000	Gold	Solder	Beryllium Copper	25 GHz
Amphenol SV Microwave 1211-40116	Snap-On	Gold	Through Hole	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Full Detent Pre-Tinned		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40001-TD	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms			1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Smooth Bore	1000	Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40110	Snap-On	Gold	Surface Mount Through Hole	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40004	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Limited Detent	500	Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40080	Snap-On	Gold	Surface Mount Through Hole	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Pre-Tinned (J-STD-001) Smooth Bore	1000	Gold	Solder	Beryllium Copper	25 GHz
Amphenol SV Microwave 1211-40082	Snap-On	Gold	Surface Mount Through Hole	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent Pre-Tinned		Gold	Solder	Beryllium Copper	25 GHz
Amphenol SV Microwave 1211-40113	Snap-On	Gold	Through Hole	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Full Detent		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40003-TD	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-55 °C	125 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent		Gold	Solder	Beryllium Copper	26.5 GHz
Amphenol SV Microwave 1211-40089	Snap-On	Gold	Surface Mount	Gold	Male Pin Plug	50 Ohms	-65 ░C	165 °C	1	Solder	Beryllium Copper	Polyamide-Imide (PAI)	Full Detent Pre-Tinned		Gold	Solder	Beryllium Copper	25 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 44.31
		10	$ 34.88

Description

General part information

1211-40 Series

SMP Connector Plug, Male Pin 50 Ohms Through Hole Solder
