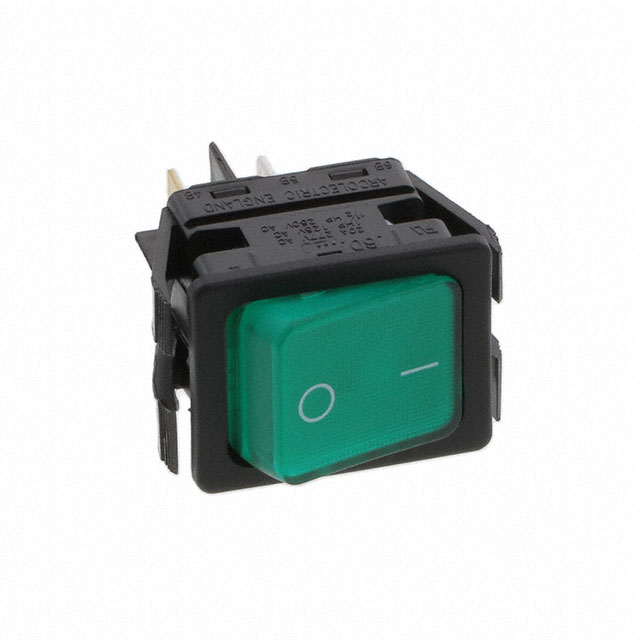

C6053ALBG31197W
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 20A 277V
Deep-Dive with AI
Search across all available documentation for this part.
C6053ALBG31197W
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 20A 277V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C6053ALBG31197W |
|---|---|
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPST |
| Current Rating (Amps) | 20 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 6.01 | |
| 10 | $ 5.41 | |||
| 25 | $ 5.14 | |||
| 50 | $ 4.93 | |||
| 100 | $ 4.76 | |||
| 250 | $ 4.52 | |||
| 500 | $ 4.17 | |||
| 1000 | $ 3.98 | |||
Description
General part information
C6053AL Series
Rocker Switch DPST 20A (AC) 277 V Panel Mount, Snap-In
