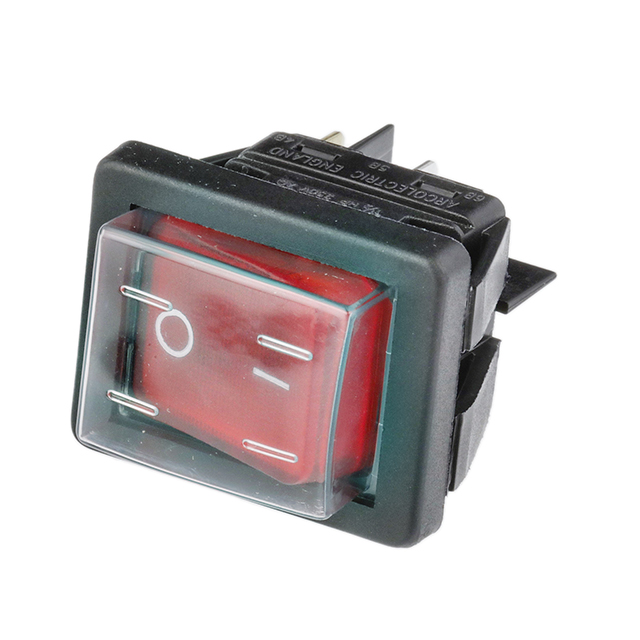

C6053ALBR3XND2
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 20A 277V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C6053ALBR3XND2
ActiveBULGIN LIMITED
SWITCH ROCKER DPST 20A 277V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C6053ALBR3XND2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 20 A |
| Illumination Type, Color | Red, Neon |
| Illumination Voltage (Nominal) | 250 VAC |
| Ingress Protection | Splash Proof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.08 | |
| 10 | $ 10.92 | |||
| 25 | $ 10.39 | |||
| 50 | $ 9.87 | |||
| 100 | $ 9.52 | |||
| 250 | $ 8.93 | |||
| 500 | $ 8.17 | |||
| 1000 | $ 7.22 | |||
Description
General part information
C6053AL Series
Rocker Switch DPST 20A (AC) 277 V Panel Mount, Snap-In
