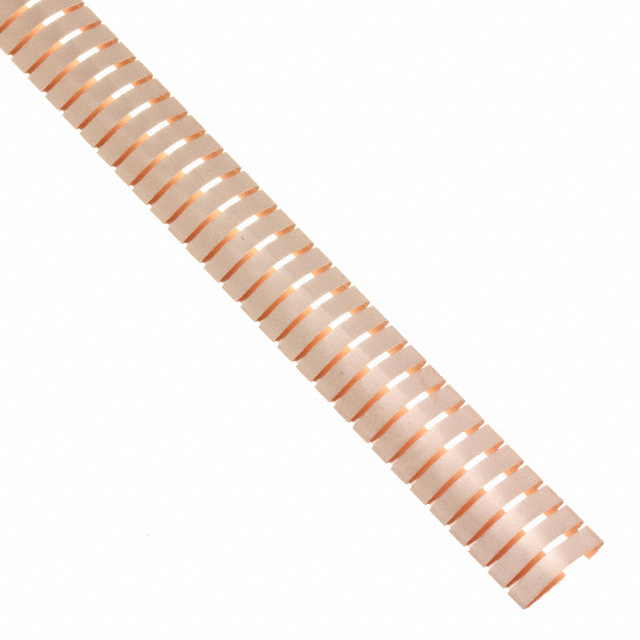

81-02-14274-2000

Active

Parker Chomerics

RFI FINGERSTOCK BECU UNPLAT ADH

Search across all available documentation for this part.

Active

Parker Chomerics

RFI FINGERSTOCK BECU UNPLAT ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

RFI FINGERSTOCK BECU UNPLAT ADH

Part	Width [x]	Width	Material	Height [z]	Height [z]	Attachment Method	Operating Temperature [Min]	Operating Temperature [Max]	Plating	Type	Length [x]	Length [x]	Width [y]	Width [y]	Width	Width [x]
Parker Chomerics 81-02-14306-2000	0.37 in	9.4 mm	Beryllium Copper	0.131 in	3.33 mm	Adhesive	-40 °C	121 °C	Unplated	Fingerstock	15.984 "	406 mm
Parker Chomerics 81-02-14274-2000			Beryllium Copper			Adhesive	-40 °C	121 °C	Unplated	Fingerstock	15.984 "	406 mm	0.45 in	11.43 mm
Parker Chomerics 81-02-14308-2000		15.24 mm	Beryllium Copper	0.22 in	5.59 mm	Adhesive	-40 °C	121 °C	Unplated	Fingerstock	17.992 in	457 mm			0.6 in
Parker Chomerics 81-02-11818-2000	0.228 "		Beryllium Copper	0.03 in	0.76 mm	Adhesive	-40 °C	121 °C	Unplated	Fingerstock	15.984 "	406 mm				5.8 mm
Parker Chomerics 81-02-14449-2000			Beryllium Copper	0.12 "	3.05 mm	Adhesive	-40 °C	121 °C	Unplated	Fingerstock	15.984 "	406 mm
