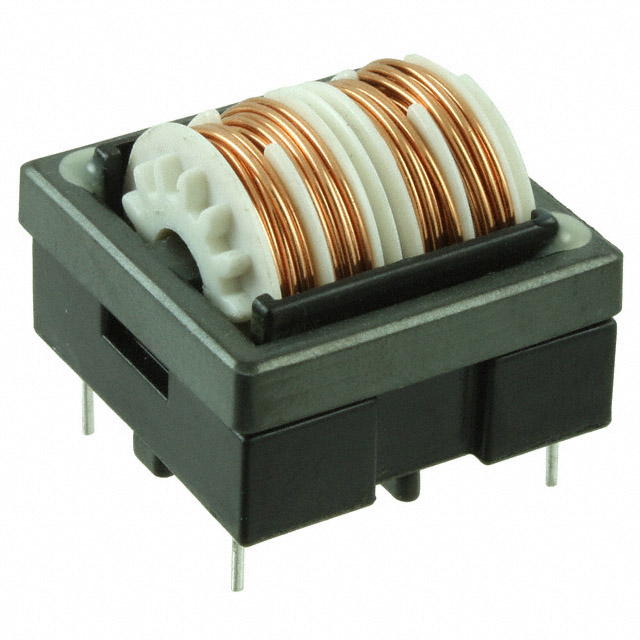

EH28-2.0-02-15M-X

Active

Schaffner EMC Inc.

CMC 15MH 2A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 15MH 2A 2LN TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EH28-2.0-02-15M-X	EH28-2 Series

Current Rating (Max) [Max]	2 A	2 A
DC Resistance (DCR) (Max)	-	162 mOhm
DC Resistance (DCR) (Max) [Max]	196 mOhm	196 mOhm
Filter Type	Power Line	Power Line
Height (Max)	23.9 mm	23.9 mm
Height (Max) [Max]	0.941 in	0.941 in
Inductance @ Frequency	15 mH	11 - 15 mH
Mounting Type	Through Hole	Through Hole
Number of Lines	2	2
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Package / Case	Horizontal	Horizontal
Package / Case	4 Lead	4 Lead
Size / Dimension [x]	1.102 in	1.102 in
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	28 mm	28 mm
Size / Dimension [y]	1.102 in	1.102 in
Voltage Rating - AC	250 V	250 V

CMC 11MH 2A 2LN TH

Part	Inductance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Operating Temperature [custom]	Filter Type	Mounting Type	Height (Max)	Height (Max) [Max]	Voltage Rating - AC	Package / Case	Package / Case	Number of Lines	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Max) [Max]
Schaffner EMC Inc. EH28-2.0-02-11M	11 mH	28 mm	1.102 in	28 mm	1.102 in	2 A	-25 °C, 100 °C	Power Line	Through Hole	23.9 mm	0.941 in	250 V	Horizontal	4 Lead	2	162 mOhm
Schaffner EMC Inc. EH28-2.0-02-15M-X	15 mH	28 mm	1.102 in	28 mm	1.102 in	2 A	-25 °C, 100 °C	Power Line	Through Hole	23.9 mm	0.941 in	250 V	Horizontal	4 Lead	2		196 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 2A DCR 196mOhm
