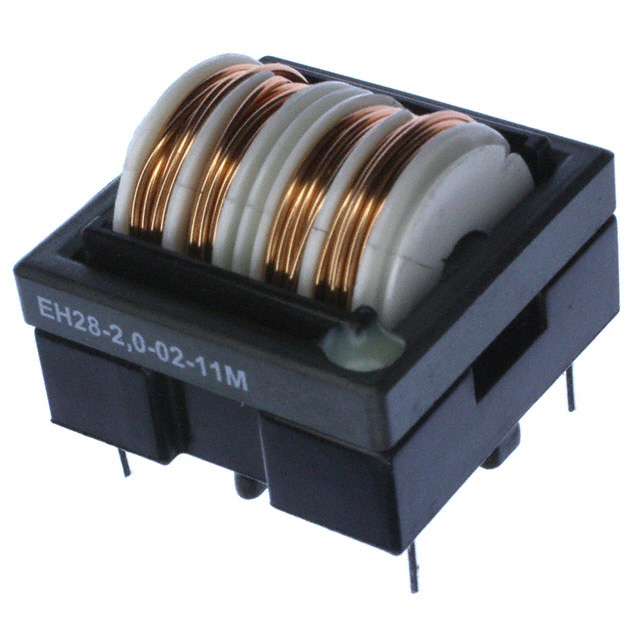

EH28-2.0-02-11M

Active

TE Connectivity Raychem Cable Protection

CMC 11MH 2A 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 11MH 2A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH28-2.0-02-11M

Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max)	162 mOhm
Filter Type	Power Line
Height (Max)	23.9 mm
Height (Max) [Max]	0.941 in
Inductance @ Frequency	11 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	1.102 in
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Size / Dimension [y]	1.102 in
Voltage Rating - AC	250 V

Part	Inductance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Operating Temperature [custom]	Filter Type	Mounting Type	Height (Max)	Height (Max) [Max]	Voltage Rating - AC	Package / Case	Package / Case	Number of Lines	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection EH28-2.0-02-11M	11 mH	28 mm	1.102 in	28 mm	1.102 in	2 A	-25 °C 100 °C	Power Line	Through Hole	23.9 mm	0.941 in	250 V	Horizontal	4 Lead	2	162 mOhm
TE Connectivity Raychem Cable Protection EH28-2.0-02-15M-X	15 mH	28 mm	1.102 in	28 mm	1.102 in	2 A	-25 °C 100 °C	Power Line	Through Hole	23.9 mm	0.941 in	250 V	Horizontal	4 Lead	2		196 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 162mOhm (Typ)
