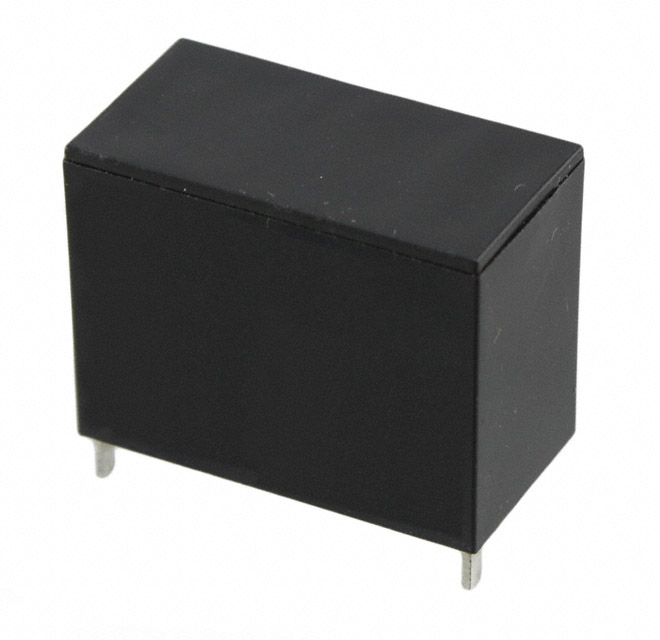

ALFG2PF121
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 33A 12V
Deep-Dive with AI
Search across all available documentation for this part.
ALFG2PF121
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 33A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALFG2PF121 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 117 mA |
| Coil Insulation | Class F |
| Coil Resistance | 103 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 33 A |
| Load - Max Switching [Max] | 8250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.82 | |
| 10 | $ 9.20 | |||
| 25 | $ 8.18 | |||
| 50 | $ 7.77 | |||
| 100 | $ 7.36 | |||
| 250 | $ 6.54 | |||
| 500 | $ 6.14 | |||
| 1000 | $ 5.73 | |||
Description
General part information
ALFG2P Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
