ALFG2PF241

Active

Panasonic Electric Works

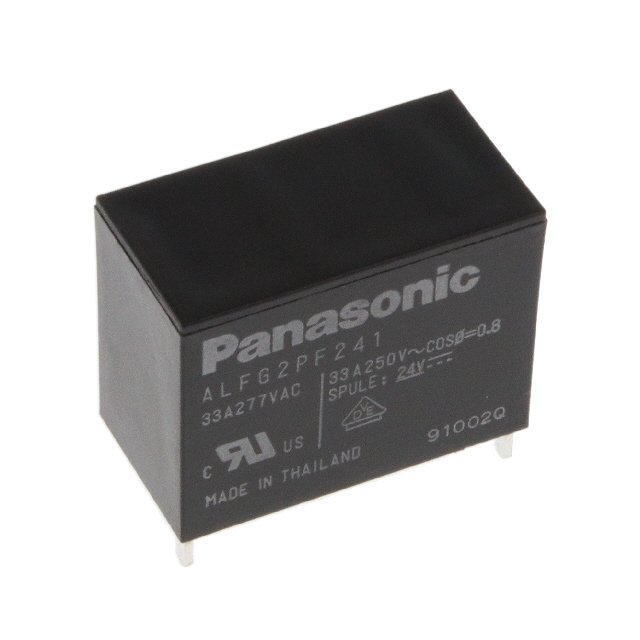

RELAY GEN PURPOSE SPST 33A 24V

Deep-Dive with AI

Search across all available documentation for this part.

ALFG2PF241

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 33A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALFG2PF241

Approval Agency	cURus, VDE
Coil Current	58.6 mA
Coil Insulation	Class F
Coil Resistance	410 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	33 A
Load - Max Switching [Max]	8250 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC
Termination Style	PC Pin

ALFG2P Series

Part	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Switching Voltage	Contact Material	Coil Voltage	Operate Time	Coil Insulation	Release Time	Coil Current	Relay Type	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Coil Type	Load - Max Switching [Max]	Termination Style	Approval Agency	Contact Form
Panasonic Electric Works ALFG2PF121	33 A	8.4 VDC	Through Hole	250 VAC	Silver Tin Oxide (AgSnO)	12 VDC	20 ms	Class F	10 ms	117 mA	General Purpose	103 Ohms	-40 °C	60 °C	1.2 VDC	Non Latching	8250 VA	PC Pin	cURus VDE	SPST-NO (1 Form A)
Panasonic Electric Works ALFG2PF181	33 A	12.6 VDC	Through Hole	250 VAC	Silver Tin Oxide (AgSnO)	18 VDC	20 ms	Class F	10 ms	78 mA	General Purpose	230 Ohms	-40 °C	60 °C	1.8 VDC	Non Latching	8250 VA	PC Pin	cURus VDE	SPST-NO (1 Form A)
Panasonic Electric Works ALFG2PF09	31 A	6.3 VDC	Through Hole	250 VAC	Silver Tin Oxide (AgSnO)	9 VDC	20 ms	Class F	10 ms	155 mA	General Purpose	58 Ohms	-40 °C	60 °C	0.9 VDC	Non Latching	7750 VA	PC Pin	cURus VDE	SPST-NO (1 Form A)
Panasonic Electric Works ALFG2PF091	31 A	6.3 VDC	Through Hole	250 VAC	Silver Tin Oxide (AgSnO)	9 VDC	20 ms	Class F	10 ms	155 mA	General Purpose	58 Ohms	-40 °C	60 °C	0.9 VDC	Non Latching	7750 VA	PC Pin	cURus VDE	SPST-NO (1 Form A)
Panasonic Electric Works ALFG2PF24	31 A	16.8 VDC	Through Hole	250 VAC	Silver Tin Oxide (AgSnO)	24 VDC	20 ms	Class F	10 ms	58.6 mA	General Purpose	410 Ohms	-40 °C	60 °C	2.4 VDC	Non Latching	7750 VA	PC Pin	cURus VDE	SPST-NO (1 Form A)
Panasonic Electric Works ALFG2PF241	33 A	16.8 VDC	Through Hole	250 VAC	Silver Tin Oxide (AgSnO)	24 VDC	20 ms	Class F	10 ms	58.6 mA	General Purpose	410 Ohms	-40 °C	60 °C	2.4 VDC	Non Latching	8250 VA	PC Pin	cURus VDE	SPST-NO (1 Form A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.04
		10	$ 9.41
		25	$ 8.36
		50	$ 7.94
		100	$ 7.53
		250	$ 6.69
		500	$ 6.27
		1000	$ 5.85

Description

General part information

ALFG2P Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
