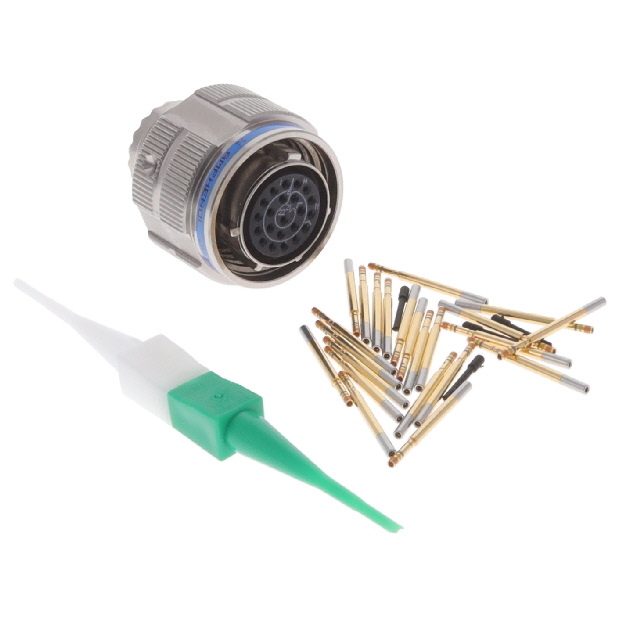

D38999/26FC35SB

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FC35SB

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FC35SB

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	B
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/26FC Series

Part	Ingress Protection	Termination	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Grade	Shielding	Orientation	Contact Finish - Mating	Shell Size, MIL	Shell Finish	Features	Number of Positions	Qualification	Applications	Contact Material	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Type	Housing Color	Note	Insert Material	Contact Type	Contact Shape	Contact Size	Shell Size - Insert
Amphenol Aerospace Operations D38999/26FC35JN	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Military	Copper Alloy	Metal	2.54 çm	100 çin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35PA	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	A	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Male Pins Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35SB	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	B	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC98PN	Environment Resistant	Crimp	Silver			Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	10	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Male Pins Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35SA	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	A	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC35PNLC	Environment Resistant			35	13	Military	Shielded	N		C	Electroless Nickel	Coupling Nut Self Locking	22 positions	MIL-DTL-38999 Series III			Metal			Plug Housing	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C	22D	For Male Pins	Silver	Contacts Not Included	Thermoplastic	Crimp	Circular
Amphenol Aerospace Operations D38999/26FC98PA-LC	Environment Resistant					Military	Shielded	A		C	Electroless Nickel	Coupling Nut Self Locking	10	MIL-DTL-38999 Series III						Plug Housing	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C		For Male Pins	Silver	Contacts Not Included		Crimp	Circular	20
Amphenol Aerospace Operations D38999/26FC35PN	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Male Pins Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C
Amphenol Aerospace Operations D38999/26FC4SN	Environment Resistant	Crimp	Silver			Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	4	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C									13-4
Amphenol Aerospace Operations D38999/26FC35SN	Environment Resistant	Crimp	Silver	35	13	Military	Shielded	N	Gold	C	Electroless Nickel	Coupling Nut	22 positions	MIL-DTL-38999 Series III	Aerospace Aviation Marine Military	Copper Alloy	Metal	1.27 µm	50 µin	Female Sockets Plug	Aluminum	Free Hanging (In-Line)	-65 ░C	200 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.50
		10	$ 47.89
		25	$ 46.40
		50	$ 45.69
		100	$ 43.04
		250	$ 42.43
		500	$ 40.69
		1000	$ 39.60
	Bulk	1	$ 308.74
		10	$ 277.43
		25	$ 257.55

Description

General part information

D38999/26FC Series

22 Position Circular Connector Plug, Female Sockets Crimp
