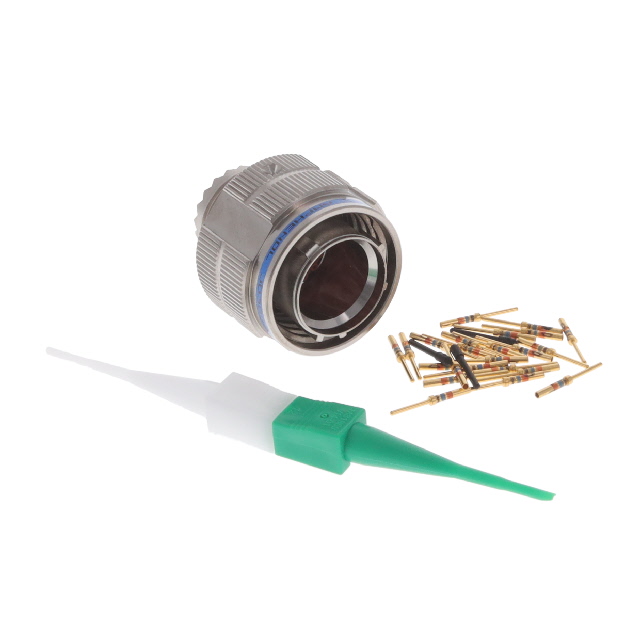

D38999/26FC35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 22POS GOLD CRIMP

D38999/26FC35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 22POS GOLD CRIMP

Description Specifications Series Pricing CAD Documents

Description

General part information

D38999/26FC Series

22 Position Circular Connector Plug, Male Pins Crimp

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FC35PN

Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Current Rating	5 A
Fastening Type	Threaded
Features	Coupling Nut
Grade	Military
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	22
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Nickel
Shell Material	Aluminum
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	13
Shell Size (MIL)	C
Shielding	Shielded
Termination	Crimp

D38999/26FC Series

...

Part	Applications	Mounting Type	Primary Material	Number of Positions	Insert Material	Shell Finish	Contact Material	Contact Finish Thickness - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Connector Type	Contact Finish - Mating	Orientation	Fastening Type	Termination	Color	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert Length	Shell Size - Insert Width	Current Rating	Features	Shell Material	Shell Size (MIL)	Contact Type	Type	Housing Color	Qualification	Contact Size	Grade	Note	Contact Shape	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection
Amphenol Aerospace Operations D38999/26FC8SE	Aviation Marine Military	Free Hanging (In-Line)	Metal	8	Thermoplastic	Nickel	Copper Alloy	50 µin	200 °C	-65 °C	Shielded	Female Sockets Plug	Gold	E	Threaded	Crimp	Silver	Dust Tight Waterproof	IP67	13 mm	8 mm	7.5 A	Coupling Nut	Aluminum	C
Amphenol Aerospace Operations D38999/26FC8SA	Aerospace Aviation Marine Military	Free Hanging (In-Line)	Metal	8		Electroless Nickel	Copper Alloy	50 µin	200 °C	-65 °C	Shielded	Female Sockets Plug	Gold	A	Threaded	Crimp	Silver			13 mm	8 mm	7.5 A		Aluminum	C
Amphenol Aerospace Operations D38999/26FC4SA-LC		Free Hanging (In-Line)		4	Thermoplastic	Nickel			200 °C	-65 °C	Shielded	Plug Housing		A	Threaded			Dust Tight Waterproof	IP67	13 mm	4 mm		Coupling Nut	Aluminum	C	Crimp	For Female Sockets	Silver	MIL-DTL-38999 Series III	16 S	Military	Contacts Not Included	Circular
Amphenol Aerospace Operations D38999/26FC4BN		Free Hanging (In-Line)		4	Thermoplastic	Nickel			200 °C	-65 °C	Shielded	Plug Housing		N (Normal)	Threaded			Dust Tight Waterproof	IP67	13 mm	4 mm		Coupling Nut	Aluminum	C	Crimp	For Female Sockets	Silver		16 S		Contacts Not Included	Circular
Amphenol Aerospace Operations D38999/26FC98PAL		Free Hanging (In-Line)	Metal	10	Thermoplastic	Nickel			200 °C	-65 °C	Shielded	Plug Housing		A	Threaded								Coupling Nut	Aluminum	C	Crimp	For Male Pins	Silver	MIL-DTL-38999 Series III	20	Military	Contacts Not Included	Circular	98	13	Environment Resistant
Amphenol Aerospace Operations D38999/26FC35JN	Aerospace Aviation Military	Free Hanging (In-Line)	Metal	22		Electroless Nickel	Copper Alloy	100 µin	200 °C	-65 °C	Shielded	Female Sockets Plug	Gold	N (Normal)	Threaded	Crimp	Silver						Coupling Nut	Aluminum	C				MIL-DTL-38999 Series III		Military			35	13	Environment Resistant
Amphenol Aerospace Operations D38999/26FC35PA	Aerospace Aviation Marine Military	Free Hanging (In-Line)	Metal	22		Electroless Nickel	Copper Alloy	50 µin	200 °C	-65 °C	Shielded	Male Pins Plug	Gold	A	Threaded	Crimp	Silver						Coupling Nut	Aluminum	C				MIL-DTL-38999 Series III		Military			35	13	Environment Resistant
Amphenol Aerospace Operations D38999/26FC35PN		Free Hanging (In-Line)	Metal	22		Nickel			200 °C	-65 °C	Shielded	Male Pins Plug	Gold	N (Normal)	Threaded	Crimp	Silver	Dust Tight Waterproof	IP67			5 A	Coupling Nut	Aluminum	C				MIL-DTL-38999 Series III		Military			35	13
Amphenol Aerospace Operations D38999/26FC8PN		Free Hanging (In-Line)	Metal	8		Electroless Nickel			200 °C	-65 °C	Shielded	Male Pins Plug	Gold	N (Normal)	Threaded	Crimp				13 mm	8 mm			Aluminum Alloy							Military					Environment Resistant
Amphenol Aerospace Operations D38999/26FC98HN		Free Hanging (In-Line)		10							Shielded	Male Pins Plug	Gold	N (Normal)	Threaded	Crimp																		98	13

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D38999/26FC35PN | Datasheet
