09100032706

Active

HARTING

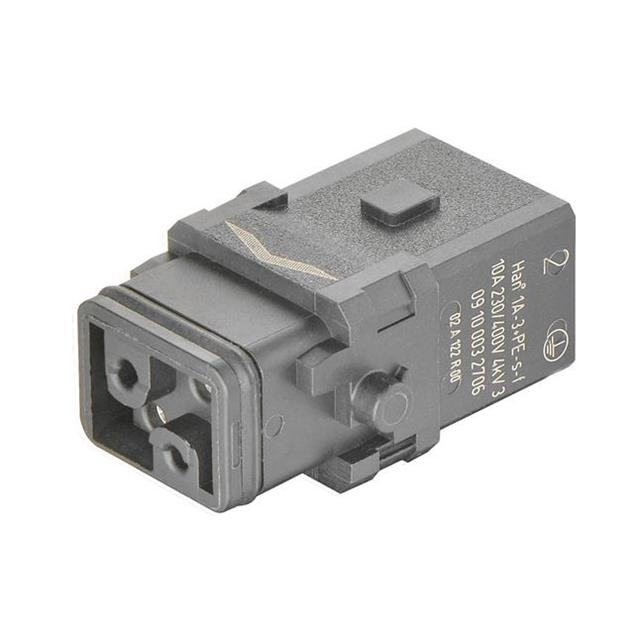

1A 3+PE FEM SCREW INSERT LLEVER

Search across all available documentation for this part.

Active

HARTING

1A 3+PE FEM SCREW INSERT LLEVER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09100032706	09100032 Series

Color	Black	Black
Contact Finish	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	10 A	10 A
Gender	Female	Female, Male
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	3+Ground	3+Ground
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Screw	Screw
Voltage Rating	400 V	400 V

1A 3+PE FEMALE SCREW INSERT FOR

Part	Termination Style	Gender	Number of Positions	Material Flammability Rating	Contact Material	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Housing Material	Voltage Rating	Size
HARTING 09100032705	Screw	Female	3+Ground	UL94 V-0	Copper Alloy	Black	Silver	-30 ░C	90 °C	10 A	Polyamide (PA), Nylon	400 V	1 A
HARTING 09100032701	Screw	Female	3+Ground	UL94 V-0	Copper Alloy	Black	Silver	-30 ░C	90 °C	10 A	Polyamide (PA), Nylon	400 V	1 A
HARTING 09100032605	Screw	Male	3+Ground	UL94 V-0	Copper Alloy	Black	Silver	-30 ░C	90 °C	10 A	Polyamide (PA), Nylon	400 V	1 A
HARTING 09100032700	Screw	Female	3+Ground	UL94 V-0	Copper Alloy	Black	Silver	-30 ░C	90 °C	10 A	Polyamide (PA), Nylon	400 V	1 A
HARTING 09100032706	Screw	Female	3+Ground	UL94 V-0	Copper Alloy	Black	Silver	-30 ░C	90 °C	10 A	Polyamide (PA), Nylon	400 V	1 A
HARTING 09100032600	Screw	Male	3+Ground	UL94 V-0	Copper Alloy	Black	Silver	-30 ░C	90 °C	10 A	Polyamide (PA), Nylon	400 V	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Black 3+Ground Position Screw
