09100032705

Obsolete

HARTING Technology Group

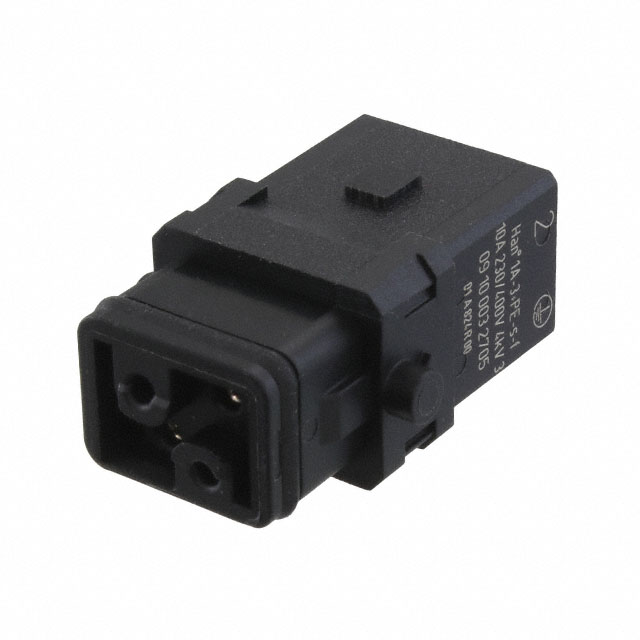

1A 3+PE FEMALE SCREW INSERT FOR

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

1A 3+PE FEMALE SCREW INSERT FOR

Technical Specifications

Parameters and characteristics for this part

Specification	09100032705

Color	Black
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	3+Ground
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Size	1 A
Termination Style	Screw
Voltage Rating	400 V

Part	Voltage Rating	Contact Material	Material Flammability Rating	Size	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish	Gender	Color	Number of Positions	Housing Material	Termination Style
HARTING Technology Group 09100032706	400 V	Copper Alloy	UL94 V-0	1 A	-30 ░C	90 °C	10 A	Silver	Female	Black	3+Ground	Polyamide (PA) Nylon	Screw
HARTING Technology Group 09100032605	400 V	Copper Alloy	UL94 V-0	1 A	-30 ░C	90 °C	10 A	Silver	Male	Black	3+Ground	Polyamide (PA) Nylon	Screw
HARTING Technology Group 09100032700	400 V	Copper Alloy	UL94 V-0	1 A	-30 ░C	90 °C	10 A	Silver	Female	Black	3+Ground	Polyamide (PA) Nylon	Screw
HARTING Technology Group 09100032701	400 V	Copper Alloy	UL94 V-0	1 A	-30 ░C	90 °C	10 A	Silver	Female	Black	3+Ground	Polyamide (PA) Nylon	Screw
HARTING Technology Group 09100032600	400 V	Copper Alloy	UL94 V-0	1 A	-30 ░C	90 °C	10 A	Silver	Male	Black	3+Ground	Polyamide (PA) Nylon	Screw
HARTING Technology Group 09100032705	400 V	Copper Alloy	UL94 V-0	1 A	-30 ░C	90 °C	10 A	Silver	Female	Black	3+Ground	Polyamide (PA) Nylon	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Female Insert Black 3+Ground Position Screw
