09100032600

Obsolete

1A 3+PE MALE SCREW INSERT WITH S

Obsolete

1A 3+PE MALE SCREW INSERT WITH S

Description

General part information

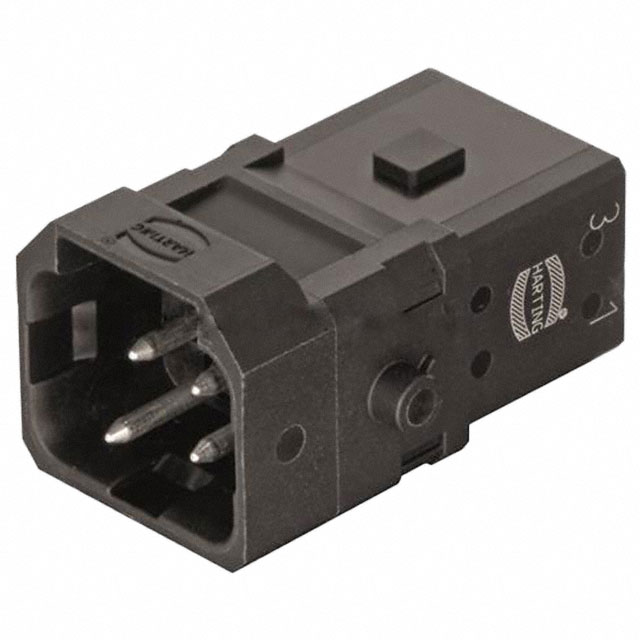

Male Insert Black 3+Ground Position Screw

Parameters and characteristics for this part

Specification	09100032600

Color	Black
Connector Type	Insert
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating	10 A
Gender	Male
Housing Material	Nylon, Polyamide, PA
Material Flammability Rating	UL94 V-0
Number of Positions	3
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-30 °C
Position Types	Ground
Size	1A
Termination Style	Screw
Voltage Rating	400 V

Part	Contact Material	Housing Material	Contact Finish	Material Flammability Rating	Color	Current Rating	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Size	Number of Positions	Position Types	Connector Type	Gender	Termination Style
HARTING 09100032706	Copper Alloy	Nylon PA Polyamide	Silver	UL94 V-0	Black	10 A	400 V	90 °C	-30 °C	1A	3	Ground	Insert	Female	Screw
HARTING 09100032605	Copper Alloy	Nylon PA Polyamide	Silver	UL94 V-0	Black	10 A	400 V	90 °C	-30 °C	1A	3	Ground	Insert	Male	Screw
HARTING 09100032700	Copper Alloy	Nylon PA Polyamide	Silver	UL94 V-0	Black	10 A	400 V	90 °C	-30 °C	1A	3	Ground	Insert	Female	Screw
HARTING 09100032701	Copper Alloy	Nylon PA Polyamide	Silver	UL94 V-0	Black	10 A	400 V	90 °C	-30 °C	1A	3	Ground	Insert	Female	Screw
HARTING 09100032600	Copper Alloy	Nylon PA Polyamide	Silver	UL94 V-0	Black	10 A	400 V	90 °C	-30 °C	1A	3	Ground	Insert	Male	Screw
HARTING 09100032705	Copper Alloy	Nylon PA Polyamide	Silver	UL94 V-0	Black	10 A	400 V	90 °C	-30 °C	1A	3	Ground	Insert	Female	Screw
