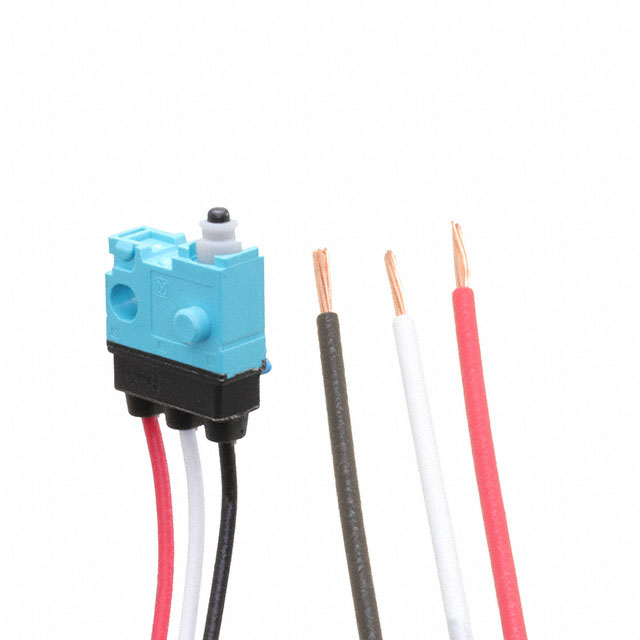

ASQ10610

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Termination Style	Electrical Life	Current Rating (Amps)	Mounting Type	Actuator Type	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Operating Position	Operating Position	Overtravel	Overtravel	Overtravel [x]	Overtravel [x]	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ASQ10610	153 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Round (Pin Plunger)	SPDT	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V	8.4 mm	0.33 in	0.087 in	2.2 mm
Panasonic Electric Works ASQ10627	173 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Lever Straight	SPST-NC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V					2.6 mm	0.102 in	0.366 "	9.3 mm
Panasonic Electric Works ASQ10620	153 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Round (Pin Plunger)	SPST-NC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V	8.4 mm	0.33 in	0.087 in	2.2 mm
Panasonic Electric Works ASQ10628	153 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Lever Simulated Roller	SPST-NC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V	12 mm	0.472 in	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
