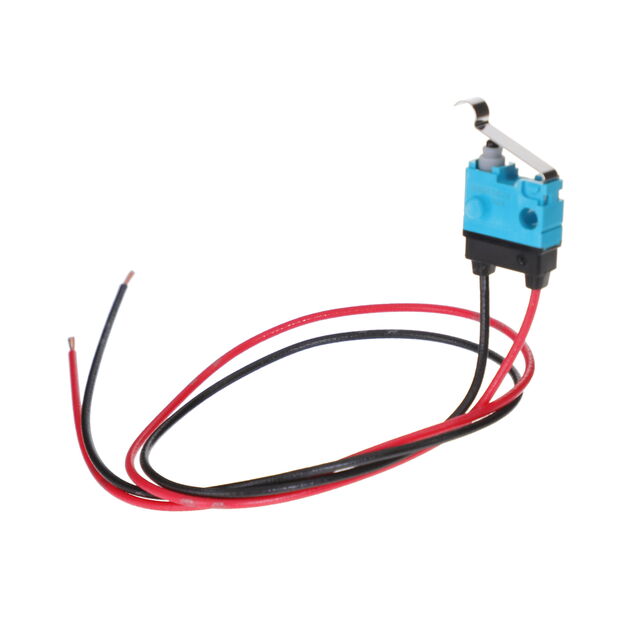

ASQ10628

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Termination Style	Electrical Life	Current Rating (Amps)	Mounting Type	Actuator Type	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Operating Position	Operating Position	Overtravel	Overtravel	Overtravel [x]	Overtravel [x]	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ASQ10610	153 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Round (Pin Plunger)	SPDT	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V	8.4 mm	0.33 in	0.087 in	2.2 mm
Panasonic Electric Works ASQ10627	173 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Lever Straight	SPST-NC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V					2.6 mm	0.102 in	0.366 "	9.3 mm
Panasonic Electric Works ASQ10620	153 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Round (Pin Plunger)	SPST-NC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V	8.4 mm	0.33 in	0.087 in	2.2 mm
Panasonic Electric Works ASQ10628	153 gf	Wire Leads	200000 Cycles	100 mA	Chassis Mount	Lever Simulated Roller	SPST-NC	IP67 - Dust Tight Waterproof	85 °C	-40 °C	On-Mom	30 V	12 mm	0.472 in	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NC Chassis Mount
