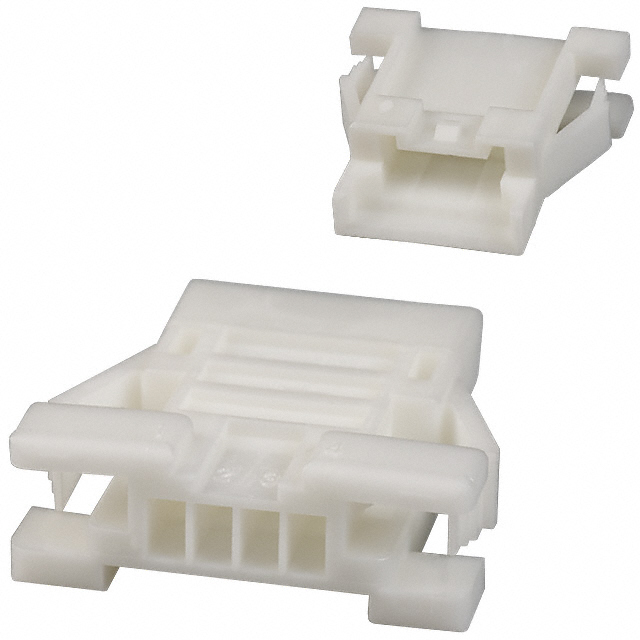

PALR-04V
ActiveJST Sales America Inc.
CONN PLUG HSG 4POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
PALR-04V
ActiveJST Sales America Inc.
CONN PLUG HSG 4POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PALR-04V |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.19 | |
| 10 | $ 0.15 | |||
| 100 | $ 0.11 | |||
| 1000 | $ 0.08 | |||
| 5000 | $ 0.07 | |||
| 10000 | $ 0.07 | |||
Description
General part information
PALR Series
4 Rectangular Connectors - Housings Plug Natural 0.079" (2.00mm)
