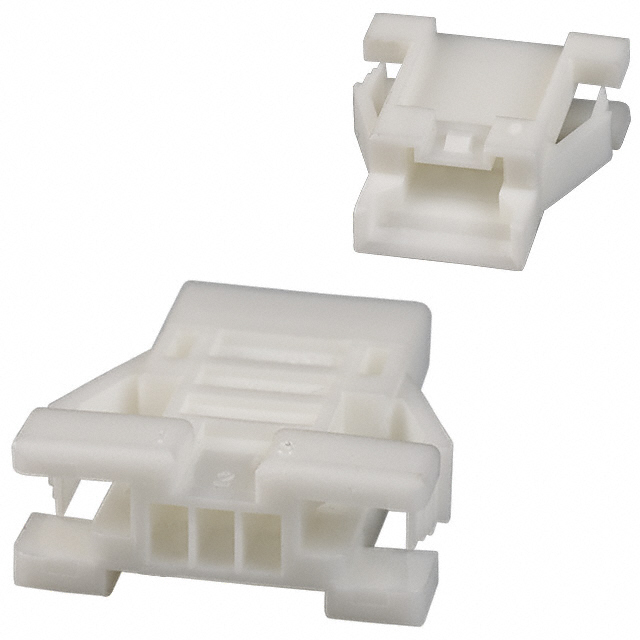

Specification	PALR-03V

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.079 in

PALR Series

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Number of Rows	Color	Pitch	Fastening Type	Mounting Type	Connector Type	Contact Type	Contact Termination	Insulation Material
JST Sales America Inc. PALR-08V	Contacts Not Included	85 °C	-25 °C	8	1	Natural	0.079 in	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-06VF	Contacts Not Included	85 °C	-25 °C	6	1	Natural	0.079 in	Locking Ramp	Free Hanging (In-Line)	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-04VF	Contacts Not Included	85 °C	-25 °C	4	1	Natural	0.079 in	Locking Ramp	Free Hanging (In-Line)	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-07VF	Contacts Not Included	85 °C	-25 °C	7	1	Natural	0.079 in	Locking Ramp	Free Hanging (In-Line)	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-02VF	Contacts Not Included	85 °C	-25 °C	2	1	Natural	0.079 in	Locking Ramp	Free Hanging (In-Line)	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-04V	Contacts Not Included	85 °C	-25 °C	4	1	Natural	0.079 in	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-07V	Contacts Not Included	85 °C	-25 °C	7	1	Natural	0.079 in	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-02V	Contacts Not Included	85 °C	-25 °C	2	1	Natural	0.079 in	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-03VF	Contacts Not Included	85 °C	-25 °C	3	1	Natural	0.079 in	Locking Ramp	Free Hanging (In-Line)	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
JST Sales America Inc. PALR-06V	Contacts Not Included	85 °C	-25 °C	6	1	Natural	0.079 in	Locking Ramp	Panel Mount Snap-In	Plug	Male Pin	Crimp	Nylon 6/6 Polyamide (PA66)
