357-064-520-258
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-064-520-258
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-064-520-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-064 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Gender | Number of Positions/Bay/Row [custom] | Termination Rows | Card Type | Contact Type | Contact Material | Termination | Pitch [x] | Pitch [x] | Color | Mounting Type | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Board Edge Straddle Mount | 64 | Card Extender |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Board Edge Straddle Mount | 64 | Card Extender | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 0.156 in | 3.96 mm | Black | Board Edge Straddle Mount | 64 | Card Extender |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Through Hole | 64 | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Through Hole | 64 | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Dual | -40 °C | 105 ░C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Board Edge Straddle Mount | 64 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder Wire Wrap | 0.156 in | 3.96 mm | Black | Through Hole Right Angle | 64 | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Through Hole | 64 | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Dual | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Through Hole | 64 | Card Guides | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Dual | -40 °C | 105 ░C | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Polyester Thermoplastic | Female | 32 | 2 | Non Specified - Dual Edge | Semi Bellows | Copper Alloy | Solder | 0.156 in | 3.96 mm | Black | Board Edge Straddle Mount | 64 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-064 Series

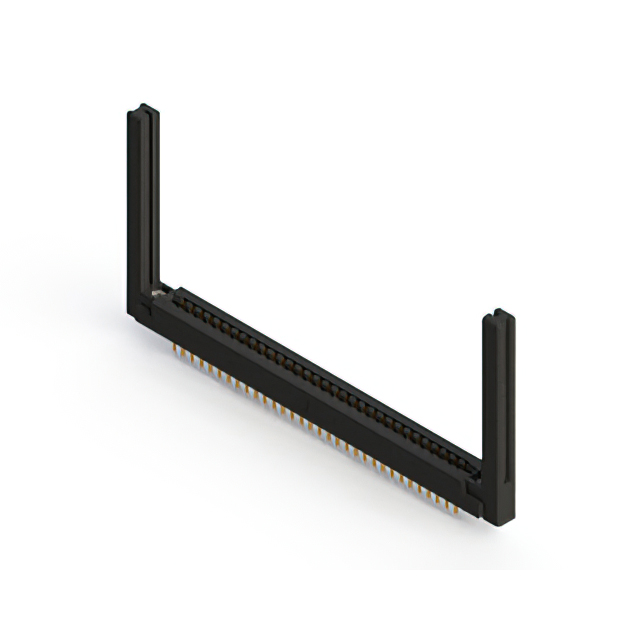

64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
