357-064-456-212

Active

EDAC Inc.

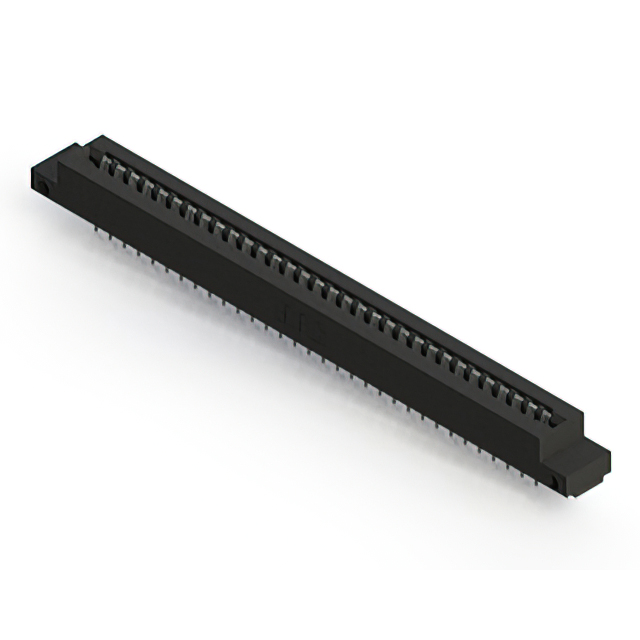

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-064-456-212

Active

EDAC Inc.

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-064-456-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

357-064 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Gender	Number of Positions/Bay/Row [custom]	Termination Rows	Card Type	Contact Type	Contact Material	Termination	Pitch [x]	Pitch [x]	Color	Mounting Type	Number of Positions	Features
EDAC Inc. 357-064-560-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Board Edge Straddle Mount	64	Card Extender
EDAC Inc. 357-064-560-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Board Edge Straddle Mount	64	Card Extender
EDAC Inc. 357-064-555-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder Eyelet(s)	0.156 in	3.96 mm	Black	Board Edge Straddle Mount	64	Card Extender
EDAC Inc. 357-064-524-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Through Hole	64	Card Guides
EDAC Inc. 357-064-522-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Through Hole	64	Card Guides
EDAC Inc. 357-064-456-212	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	-40 °C	105 ░C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2			Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Board Edge Straddle Mount	64
EDAC Inc. 357-064-558-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C		Flush Mount M3 Threaded Insert Top Opening		2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder Wire Wrap	0.156 in	3.96 mm	Black	Through Hole Right Angle	64
EDAC Inc. 357-064-520-278	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Through Hole	64	Card Guides
EDAC Inc. 357-064-520-258	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		2	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Through Hole	64	Card Guides
EDAC Inc. 357-064-456-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	-40 °C	105 ░C	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2			Polyester Thermoplastic	Female	32	2	Non Specified - Dual Edge	Semi Bellows	Copper Alloy	Solder	0.156 in	3.96 mm	Black	Board Edge Straddle Mount	64

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.20

Description

General part information

357-064 Series

64 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
