630-8W8-640-4TB

Active

EDAC Inc.

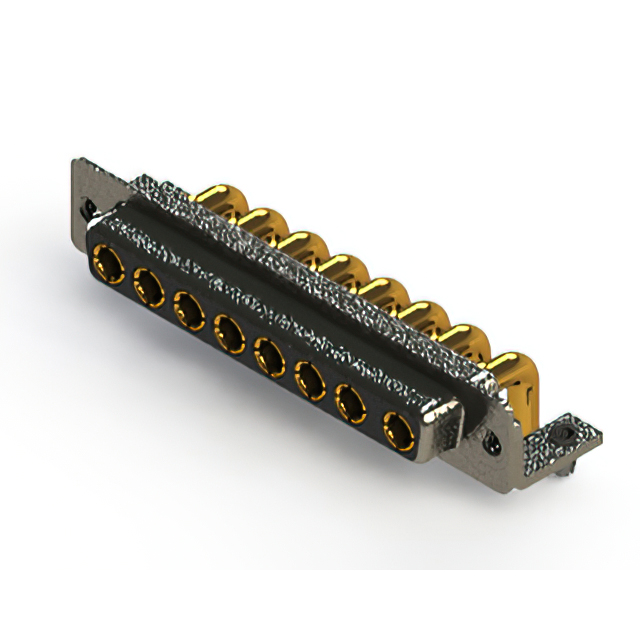

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DC-8W8, RECEPTACLE, 8 CONTACTS, 8 POWER, SOLDER

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-8W8-640-4TB

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

630-8W8 Series

...

Part	Termination	Backset Spacing	Backset Spacing	Current Rating (Amps)	Mounting Type	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions	Contact Type	Dielectric Material	Number of Rows	Connector Style	Connector Type	Voltage Rating	Flange Feature	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Material, Finish	Contact Finish Thickness	Features
EDAC Inc. 630-8W8-650-1T2	Solder	13.2 mm	0.52 "	10 A	Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	Housing/Shell (4-40)	Black	-55 °C	125 °C	UL94 V-0
EDAC Inc. 630-8W8-250-2NA	Solder	13.2 mm	0.52 "	20 A	Through Hole Right Angle	Copper Alloy	Gold			8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	Board Side (M3)	Black	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Flash
EDAC Inc. 630-8W8-640-7N1	Solder	9.4 mm	0.37 in		Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Coax	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	Housing/Shell (Unthreaded)	Black	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel		Shielded
EDAC Inc. 630-8W8-640-2T3	Solder	13.2 mm	0.52 "	20 A	Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	Housing/Shell (4-40)	Black	-55 °C	125 °C	UL94 V-0			Board Lock Mounting Brackets
EDAC Inc. 630-8W8-240-5ND	Solder	9.4 mm	0.37 in		Through Hole Right Angle	Copper Alloy	Gold			8W8	4	8	Coax	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	M3	Black	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Flash	Board Lock Mounting Brackets
EDAC Inc. 630-8W8-640-1N6	Solder	13.2 mm	0.52 "	10 A	Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	4-40	Black	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel
EDAC Inc. 630-8W8-250-1ND	Solder	13.2 mm	0.52 "	10 A	Through Hole Right Angle	Copper Alloy	Gold			8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	M3	Black	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel	Flash	Board Lock Mounting Brackets
EDAC Inc. 630-8W8-640-2T2	Solder	13.2 mm	0.52 "	20 A	Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	Housing/Shell (4-40)	Black	-55 °C	125 °C	UL94 V-0
EDAC Inc. 630-8W8-640-4N5	Solder	13.2 mm	0.52 "	40 A	Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	4-40	Black	-55 °C	125 °C	UL94 V-0	Nickel Plated Steel		Board Lock Mounting Brackets
EDAC Inc. 630-8W8-640-4TB	Solder	13.2 mm	0.52 "	40 A	Through Hole Right Angle	Copper Alloy	Gold	0.76 Ám	30 Áin	8W8	4	8	Power	Polyester Thermoplastic	1	Combo D-Sub	Receptacle Female Sockets	125 VDC	Housing/Shell (M3)	Black	-55 °C	125 °C	UL94 V-0			Board Lock Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 24.70
Newark	Each	1	$ 34.21
		5000	$ 30.25

Description

General part information

630-8W8 Series

8 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
